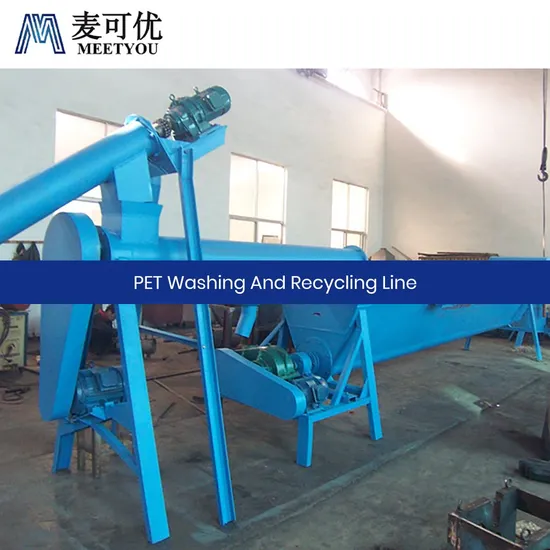

Meetyou Machinery Plastic Bottle Scrap Washing Machine OEM Custom China Pet Large Processing Capacity Plastic Bottle Recycling Factory

Product Description

Zhangjiagang Meetyou Machinery Co., Ltd.

Meetyou Machinery Pet Bottle Washing Plant Wholesale China PET Large Processing Capacity PET Washing And Recycling Line Suppliers Configure Climbing Conveyor
plastic PET bottle recycling line is the ideal solution for your PET recycling project. Our PET bottle washing recycling line is used to recycle and reprocess waste plastic PET bottles to clean PET flakes including Cola bottles, Pepsi cola bottles, Mineral water bottles, etc. The PET bottle washing line is designed and manufactured by our professional plastic recycling team and can produce the PET bottle plastic washing line between 500kg/h to 5000kg/h models according to customer requirements.
The final PET flake's humidity will be less than 1% after processing by our recycling PET bottle washing line, dry and clean flakes could send to our pelletizing machine to make granules directly. Our standard PET bottle recycling washing line consists of a series of plastic recycling machines connected by various types of conveyor systems. The whole sections of the waste PET bottle washing line including a de-baling section, sieving section, label separation section, bottle prewashing section, floatation section, and dewatering section. With rich experience in PET bottle recycling machine design, according to the frequently changing needs of the market, we also support custom PET bottle washing line services. We can design different models of capacity PET bottle recycling lines based on the quality of flakes and the next usage of requirements. The PET bottle washing recycling line can be installed with "I", "L", and "U" shapes according to your workshop. We also help you to design how to install the machines in your factory.
PET Bottle Washing Line is working to process post-consumer PET drinking bottles, Cola bottles, etc. By de-baling,trommel screen,label remover,pre-washer-automatic sorting,crusher,floating wash,hot wash,drying,zigzag separator,eddy current separation,color sorting,etc. The washed PET flakes could be food grade or filament grade after our PET bottle washing machine processed them.
Our PET recycling line is fully automatic where each piece of recycling machinery is connected via the use of either belt or screw conveyors. In addition, the entire washing line is controlled via a central electric control panel and cabinet
Our standard PET bottle washing line is your complete solution for turning dirty bales of PET bottles into clean PET flakes ready for usage in producing polyester staple fiber or further processing into plastic granules via pelletizing. We offer standard washing capacities from 500kg/h up to 3000kg/h and can also manufacture custom wash lines with greater capacities.
Our complete PET bottle washing line is an ideal solution for anyone looking to start or improve their plastic bottle recycling business. This fully automated, turnkey solution processes baled PET bottles into contaminant-free PET flakes. These plastic flakes can be sold for high prices to manufacturers of polyester staple fiber or can be pelletized into granules for use in manufacturing other PET products.While our standard PET bottle washing lines are sufficient for most facilities, custom setups with additional machinery and increased capacity can be designed for your specific needs.
Features
We devoted ourselves to Plastic crushing washing lines for many years, covering most of Europe and the American market. We are expecting to become your long-term partner in China.
It can be made into different lengths according to different requirements. This device is separated by proportion. It can adjust based on different materials, reach the aim of washing, and separate.
We are a manufacturer specializing in plastic processing machinery for many years.
Application
Bottles: Bottles include refreshing beverage bottles, mineral water bottles, liquid food bottles, cosmetic bottles, etc; PET bottle recycling: PET bottles are widely used in carbonated beverages such as Coca-Cola, Pepsi, Sprite, etc. Most of them are currently made of PET bottles and HDPE bottles bottom composition, bottle cap material HDPE, a trademark is a biaxially oriented polypropylene (BOPP) film, which is adhered to the bottle body with EVA type adhesive.
We devoted ourselves to Plastic washing lines for many years, covering most of Europe and the American market. We are expecting become your long-term partner in China
Specification

Model	Production Capacity	Installed Power	Production Line Length
PE-300	300-400	70	11
PE-500	500-600	95	15
PE-1000	800-1200	170	30
PE-2000	1500-2000	210	37

Quality Table of Final PET Flakes
Moisture Content	<=2%	PVC Content	<=100PPM
Bulk density	0.25-0.35g/m³	Glue Content	≤30ppm
Flake Size	≤16mm, or customized	Metal Content	<20ppm
Total impurity content	≤200ppm	PE/PP Content	<20ppm
Label Content	≤30ppm	PH Value	7-8

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control the quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts are from our certified supplier, our quality inspector will check these parts before entering our warehouse. Detailed Photos
Double Shaft Shredder
Uses: Pre-Shredding Barrels Or Jugs To Increase Yield
Motor Power: 45KM
Gearbox: ZLY Series, Guomao Brand
Rotation Diameter: Medium 450Mm
Speed: 12/15Rpm
Number Of Fixed Knives: 24 Pieces
Number Of Moving Knives: 24 Pieces
Blade Material: Low Alloy Tool Steel (9CrSi)
Output: 1 500KG/H-2000KG/H
Crusher
Usage: Used To Crush Materials Into Smaller Sizes
Number Of Knives: 10
Number Of Fixed Knives: 4
Blade Material: SKD-11
Mesh Size: Customized
Rotor Diameter: 630Mm
Rotor Length: 1000Mm
Motor Power: 90KM
Output Capacity: > 1000 Kg/ H
Low Speed Scrubbing Machine
Uses: Transportation, Cleaning
1. Spindle Rotation Diameter: Medium 500Mm
2. Effective Length: 4000Mm
3. Motor Power: 22Kw
4. Blade Thickness: 6Mm
5. Rotor Speed: 750Rpm
6. Mesh Thickness: 3Mm
The Parts In Contact With The Material Are Stainless Steel
High Speed Scrubbing
Uses: Separation Of Sand/Mud Or Fine Powder From Flakes
Motor: 37KW
Material: The Parts In Contact With The Material Are Stainless Steel
Blade Thickness: 10Mm
Sieve Hole: 3Mm
Spindle Diameter: 550Mm
Spindle Speed: 1500Rpm
Rinse Pool
Usage: Cleaning Impurities In Raw Materials
Motor Power: 6.7KW
The Whole Is Mainly Made Of Stainless Steel
Length: 6000Mm
Width: 2500Mm
Height: 2600Mm
The Side Is Designed With A Sewage Lifting Screw
Bottom Belt In The Pool - Root Sinking Sewage Screw
Horizontal Dehydrator
Usage: Used To Reduce Water Content
Motor Power: 30KW
Rotation Diameter: 500Mm
Length: 1600Mm
Speed: 1500 Rpm
Dehydration Rate: 98%.
Parts In Contact With The Wet Sheet Are Made Of SUS304
FAQ
Q. What are acceptable payment terms?
A. T/T or L/C at sight.
Q. What is the delivery time for the machines?
A. Usually it will be 50-60 days according to the situation of the order.
Q. What is the warranty time of the machines?
A. It will be 12 months since the acceptance of the machines or 15 months since delivery to the loading port.
Q. What about your after-sales service?
A. Engineers available to make installation, commissioning, training, and providing after-sales service overseas.
Q.How many electric, water, air need for the machines?
A.technical department supply the whole layout for workshop details.
Q. Can I operate machine if don't have experienced engineers?
A. (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
Q. Any quality checking before shipment?
A. 100% confirm, run and test machines before shipment with quality certificate
Q. How can u help us when face some technical problem?
A. 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Q. Where can we get spare part?
A. we choose International Brand that customer can find it in everywhere, such as Siemens, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
