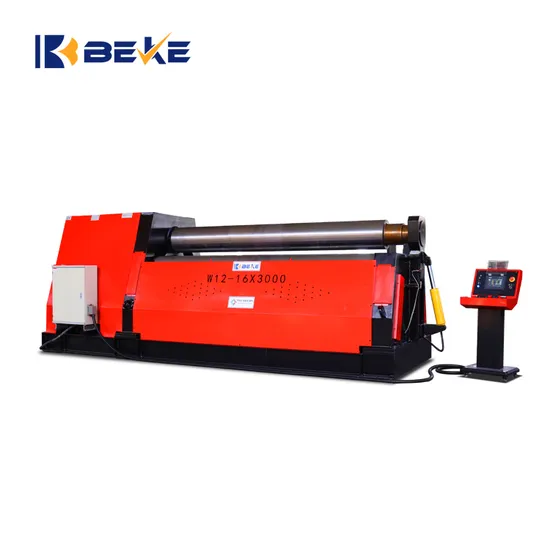

Beke 20mm Thickness Steel and 3 Meter Metal Sheet 4 Rollers Hydraulic Rolling Machine
Basic Info.
Model NO.
W12
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Roll Forming Machine
Max. Width of Plate
3000mm
up Roller Diameter
360mm
Side Roller Diameter
250mm
Main Motor
15kw
Model
W12 16X3000
Transport Package
Covered with Plastic Film
Specification
5450x1920x2040mm
Trademark
BEKE
Origin
China
HS Code
8462299000
Product Description
Product DescriptionDetailed Photos
Packaging & Shipping
Our company
Certifications
| MODEL | W12 16X3000 |
| Max. Thickness of plate | 16mm(CS),12mm(SS) |
| Max. Pre-bending thickness | 12mm(CS),10mm(SS) |
| Max. Width of plate | 3000mm |
| The length of working rolls | 3100mm |
| Up roller diameter | 360mm |
| Bottom roller diameter | 330mm |
| Side roller diameter | 250mm |
| Minimum bending diameter | 700mm |
| Yield limit | 245MPa |
| Bending speed | 4m/min |
| Main motor | 15KW |
| Weight | 15500KGS |
| Dimension | 5450x1920x2040mm |
| Structure style: lt belongs to four roller plate rolling machine. lt wide used in the manufacture of pressure vessels, machinery, hydropower, construction and other industries of the barrel body pre bending, roll round, and also have a function of checking circle and leveling. The top roller driven by hydraulic motor.Through the friction between the metal plate and the top roller to drive the bottom roller and side rollers rotate. And supply the torque for bending plate. The bottom roller, side roller and drop end are all driven by hydraulic oil tank. The bottom roller move up and down, the side roller move along with an arc.The bottom roller rising to clamp the plate and the side roller title up to pre-bend the end of the plate. | |
| Performance featureS It's easy to operate, rich shape bend; CNC control, digital readout for position of each rollers. High accuracy and precision circle; Full hydraulic drive, high efficiency and energy saving, the drive power is equivalent to the traditional 60%; Once fomming, the productivity is higher 50%-80% than three roller bending machine; Aligning the material is convenient and accurate, avoid the wrong side phenomenon; Cone bending device; Pemmanent lubrication (bearing life without refueling); The top and bottom roller clamp the plate during rolling without slipping; The minimum bending diameter of the cylinder can get to 1.1 times the diameter of the top roller, the surplus flat edge smaller than any type of other plate rolling machine; The carrying device and feeding device and support device can be installed easily; CE certificate. | |
