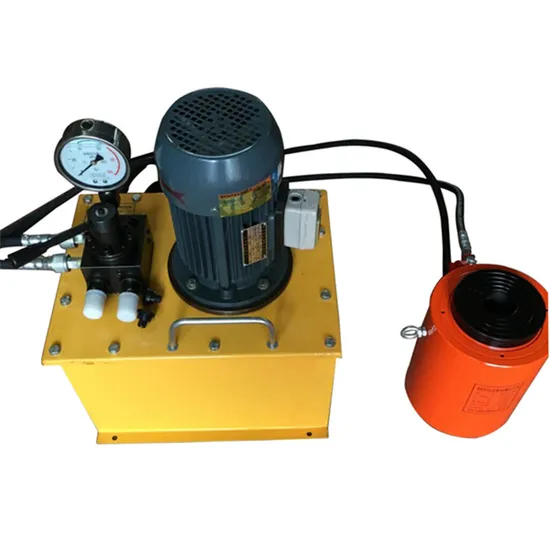

Hollow hydraulic jacks 300 ton double acting hollow plunger cylinder
| US$150.00-1,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
RRH Series
Type
Hydraulic Jack
Structure
Hydraulic Jack
Capacity (Load)
Standard Model: 30-150 Tons
Power Source
Hydraulic
Max Height
Customized
Certification
CE, ISO 9001:2000
Condition
New
Jack Model
Rrh Series
Tonnage
30-150 Tons
Stroke
Customized
Body Height
Customized
Extend Height
Stroke + Body Height
Outer Diameter
Customized
Plunger Diameter
Please Refer The Datasheet
Capacity of Oil
Please Refer The Datasheet
Pressure
63MPa
Model of Oil Pump
as You Request
Transport Package
Standard Export Package
Specification
standard specification and customized
Trademark
Leadcrete
Origin
Henan China
HS Code
84254210
Production Capacity
1000 Set
Product Description
Hollow hydraulic jacks 300 ton double acting hollow plunger cylinder1. Describe:
RRH series of double acting hollow hydraulic jack has all the function of general hydraulic
jack, and it also has the function of pulling. It also used for tension PC strands, steel wire,
axle and drill rod.
2. Features:
Double acting design can highly improve the convenience.
Built-in safe valve can protect jack when over loading.
Cylinder can bear Max loading when Max stroke.
High quality seal ring make the jack's life more long, no oil leakage.
3. Technology data:
Model | Capacity T | Stroke B-A mm | Closed height A mm | Extend height B mm | Outer diameter mm | Center hole mm | Weight Kg |
| RRH-307 | 30 | 178 | 330 | 508 | 114 | 33.3 | 22 |
| RRH-3010 | 257 | 432 | 689 | 114 | 33.3 | 27 | |
| RRH-603 | 60 | 89 | 248 | 337 | 159 | 53.8 | 28 |
| RRH-606 | 165 | 324 | 489 | 159 | 53.8 | 35 | |
| RRH-6010 | 257 | 438 | 695 | 159 | 53.8 | 46 | |
| RRH-1001 | 100 | 38 | 165 | 203 | 213 | 79.2 | 39 |
| RRH-1003 | 76 | 254 | 330 | 213 | 79.2 | 61 | |
| RRH-1006 | 152 | 342 | 495 | 213 | 79.2 | 79 | |
| RRH-10010 | 257 | 460 | 718 | 213 | 79.2 | 107 | |
| RRH-1508 | 150 | 203 | 349 | 552 | 248 | 79.5 | 111 |
If there is no model you need, please contact us in time. Can be customized according to your tonnage, stroke and project!
4.Application:
Our hydraulic jacks have been widely used for industrial field, such as steel plant, cement industry, chemical and refinery, bridge, railway, highway, hydropower station, ship repair, building, construction and maintenance.
5.Company information:
Zhengzhou Lead Equipment Co., Ltd. Have been in hydraulic tools industry since 2009. Our main products as follow:
Single acting hydraulic jack/cylinder/ram (10-100 tons)
Single acting hollow hydraulic jack/cylinder/ram (12-100 tons)
Double acting hydraulic jack/cylinder/ram (50-2000 tons)
Double acting hollow hydraulic jack/cylinder/ram (50-2000 tons)
Single acting hydraulic jack/cylinder/ram with lock nut (55-200 tons)
Thin type single acting hydraulic jack/cylinder/ram (10-200 tons)
Ultrathin hydraulic jack/cylinder/ram (10-200 tons)
Flange type hydraulic jack/cylinder/ram (10-630 tons)
Synchronous hydraulic jack (10-1000 tons)
Hydraulic accessories: high pressure oil hose, couplers, seal kits, mainfold, etc.
All the tonnage, stroke, height can be customized according to client's requirements, supply the best quality and serve. Our warranty is 2 years.
