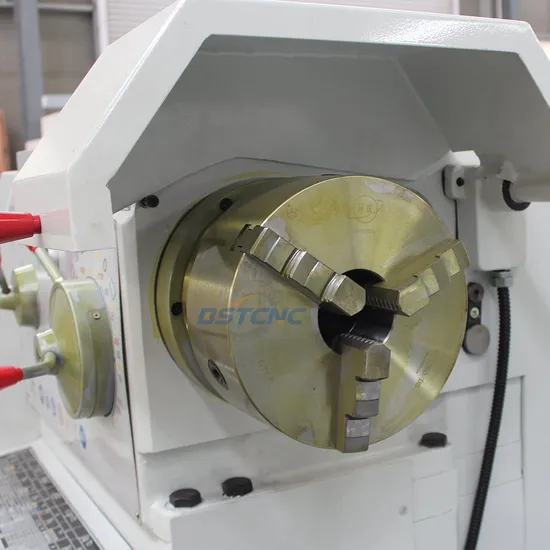

Ca6150/Ca6250 Metal Processing Horizontal Manual Turning Lathe Machine
| US$7,600.00-8,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CA6250
Processing Accessory
Metal
Guide Rail
Inclined Guide Rail
Tool Holder
4 Station
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Product Name
Metal Steel Lathe Conventional Metal Lathe
Spindle Taper
Mt6
Spindle Speed
16-1400rpm
Main Motor
7.5kw
Gross Weight
2200kg
Net Weight
2100kg
Max.Swing Over Bed
500mm
Width of Bed
400mm
Spindle Bore
52/80/105mm
Section of Turning Tool
25X25mm
Chuck Size
250mm
Tool Post Type
Manual
Tailstock Type
Manual
Processing Length
750/1000/1500/2000/3000/4000mm
Transport Package
Plywood Case with Steel Base
Specification
5.8CBM
Trademark
BST
Origin
China
HS Code
8458190000
Production Capacity
1000/Year
Packaging & Delivery
Package Size
260.00cm * 120.00cm * 180.00cm
Package Gross Weight
2200.000kg
Product Description
Product Features
-This lathe is suitable for internal and external turning,tapering ,and other rotating faces ,metric,module and inch threads, as well as drilling and pull oil slot .
-The lathe bed is 400mm,owns high rigidity,guide face after high frequency quenching,with high durability .
-Easy operated ,one handle to operate quite convenient .
-Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily . Product Parameters
| Item | CA6150/CA6250 |
| Max. Swing over bed | 500mm |
| Max. swing over carriage | 300mm |
| Max. swing in gap(saddle) | 720mm |
| Effective gap length | 210mm |
| Max. Length of work piece | 750/1000/1500/2000/3000/4000mm |
| Width of bed | 400mm |
| Section of turning tool | 25 x 25 |
| Spindle speed | 16-1400rpm(24 steps) |
| Hole through spindle | 105mm |
| Spindle taper | NO.6(MT6) { Φ113 1:20} |
| Number of feeds | 64 kinds |
| Range of metric threads(kinds) | (1-192mm) 44kinds |
| Range of inch threads(kinds) | (2-24tpi) 21kinds |
| Range of module threads(kinds) | 0.25-48( Module 39 kinds) |
| Range of pitch threads(kinds) | 1-96DP(37 kinds) |
| Max. Tailstock spindle travel | 150mm |
| Tailstock spindle diameter | Φ75mm |
| Taper of Tailstock spindle center hole | NO.5 (MT5) |
| Main motor | 7.5KW |
| Packing Dimension | 2600x 1200 x 1800mm |
| Net /Gross weight | 2100/2200KG |
