US$1,780.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO 9001
The Width of Platform
760mm
Specification
Lifting Platform
Production Capacity
5000sets/Year
Product Description

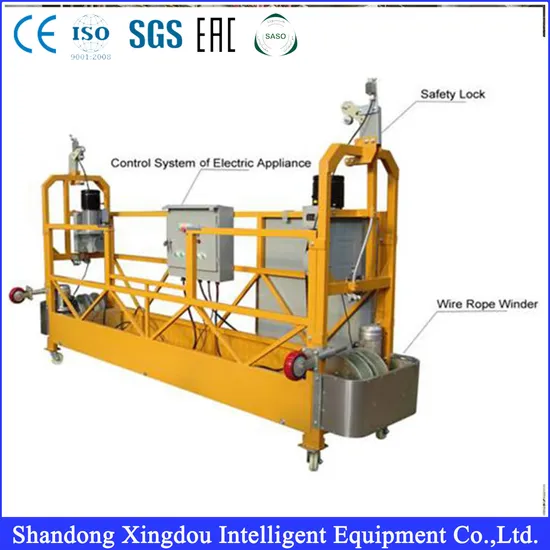

Zlp 630 Aluminum Stage Suspended Window Cleaning Platform
The platform can be customized,pls contact me feel free sky1pe:dmckitty
Model
| ZLP 500
| ZLP630
| ZLP800
| ZLP1000
|
Appearance
| Painting / Hot galvanized
|
Fabrication material
| Steel/ Aluminum alloy
|
Rated load
| 500 kg
| 630kg
| 800kg
| 1000kg
|
Lifting speed
| 9~11m/min
| 9~11m/min
| 8~10m/min
| 8~10m/min
|
Motor power
| 2×1.5kw
| 2×1.5kw
| 2×1.8kw
| 2×2.2kw
|
Brake torque
| 16 km
| 16 km
| 16 km
| 16 km
|
Steel rope angle adjusting range
| 3°~8°
| 3°~8°
| 3°~8°
| 3°~8°
|
Distance between two steel rope
| ≤ 100mm
| ≤ 100mm
| ≤ 100mm
| ≤ 100mm
|
Counterweight (optional)
| 25kg×30pcs
| 25kg×36pcs
| 25kg×40pcs
| 25kg×44pcs
|
Diameter of steel rope
| 8.3mm
| 8.3mm
| 8.6mm
| 8.6mm
|
Max Lifting height(m)
| 300m
| 300m
| 300m
| 300m
|
Motor rotation speed
| 1420 r/min
| 1420 r/min
| 1420 r/min
| 1420 r/min
|
Voltage (3PHASES) (optional)
| 220V/380V/415V 50Hz/60Hz
|
|
| |
Parts of construction swing stage equipment: 1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized) 2. Suspension Mechanism: Steel (painted or hot galvanized) 3. Electric hoists:LTD6.3 or LTD8 4. Safety Lock: LST30 5. Electric control box: Along with hoists 6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm 7. Safety rope: 18mm,20mm 8. Electric cable: 3*2.5+2*1.5 9. Counterweights: Cement , cement with steel cover & Iron counterweight 10. Spare parts
