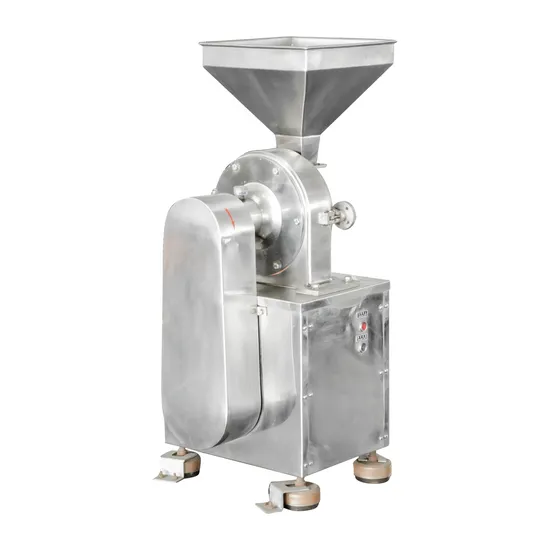

15b IV. V. VI Universal Pulverizer
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
15B
Cutter Material
High-Speed Steel
Drive
Electric
Object
Metal
Type
Impact Crusher
Applied in
Food, Pharmaceutical and Chemical
Crushing Fineness
20-120mesh
Feeding Size
6mm
Weigh
100kg
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Universal Tongs
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8465990000
Production Capacity
10-50kg/H
Product Description
Main Application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc..
Technical Parameters:
| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Motor Power | overall dimension | weigh |
| 15BIV.V.VI | 10-50kg/h | 6mm | 20-120mesh | 6000r/min | 2.2kw | 550*400*850mm | 100kg |
| 20BIV.V.VI | 60-150kg/h | 6mm | 20-120mesh | 4500r/min | 4kw | 550*600*1250mm | 280kg |
| 30BIV.V.VI | 100-400kg/h | 6mm | 20-120mesh | 3800r/min | 5.5kw | 600*700*1450mm | 350kg |
| 40BIV.V.VI | 160-1000kg/h | 10mm | 20-120mesh | 3400r/min | 11kw | 800*900*1550mm | 550kg |
| 60BIV.V.VI | 500-2000kg/h | 12mm | 20-120mesh | 2800r/min | 18.5kw | 900*900*1880mm | 680kg |
| 80BIV.V.VI | 1000-5000kg/h | 12mm | 20-120mesh | 2000r/min | 37kw | 1100*950*1960mm | 1500kg |
| 100BIV.V.VI | 2000-8000kg/h | 12mm | 20-120mesh | 1500r/min | 55kw | 1350*1000*2100mm | 2500kg |
Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to GMP standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
