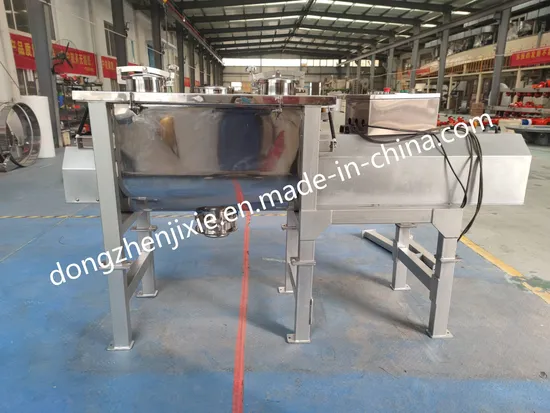

Dzjx Industrial Food Dry Powder Mixer Ribbon Blender Powder Mixing Machine

Product Description

Product Description DZJX Stainless Steel Spiral Ribbon Mixer
Ribbon mixer is generally used for the mixing of viscous or cohesive powder particles and the mixing of liquid and paste materials in the powder particles, and due to the characteristics of difficult cleaning of viscous materials, it is suitable for mixing occasions with large output and not often changing varieties.
This machine has high efficiency, high uniformity, high loading factor, low energy consumption, low pollution, low crushing.
Ribbon Mixer Product Presentation:
* Machine Material
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different Material can also be used in combination.Surface treatment for stainless steel include sandblasting, wire drawing, polishing, mirror polishing, all can be used in different parts of a mixer.
* Spray System
Different main shaft agitators can be equipped according to the properties of raw materials. The main shaft agitator could be:
inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator. * Spray equipment can be installed according to customer requirements.
* Ribbon
Double screw belt design, higher mixing uniformity, screw belt and shaft welding using the most advanced laser welding, more durable.
* Inlet
Various inlets on the top cover of the barrel can be designed according to different situations. They can be used as man hole,
cleaning door, feeding hole, vent, and dust colleting hole. The top cover can be designed as fully-opened lid for easy cleaning.
* Outlet
The drive types of valve are Manual, pneumatic, and electric. Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc. Detailed Photos
Product Parameters

Model	A mixed (kg)	Power (kw)	Spindle speed (r/min)	Weight (kg)
DZRB-200	60-80	2	42	200
DZRB-200	80-100	3	42	450
DZRB-500	200-250	5.5	42	800
DZRB-1000	400-500	7.5	42	1200
DZRB1500	600-700	11	32	1500
DZRB-2000	800-1000	15	32	1800
DZRB-3000	1200-1500	18.5	32	2000
DZRB-4000	1600-2000	22	30	2500
DZRB-6000	2400-3000	37	28	3000
DZRB-8000	3200-4000	45	28	4000
DZRB-10000	4000-5000	55	22	5000

* More models, support customization, please click here to contact us*
Our Advantages
1.good mixing effect: The screw belt mixer uses spiral blades to stir the material, so that the material can get better mixing effect in the mixing process. It can roll and mix the material in a full range, so that the mixing effect of the material is more uniform and adequate. This good mixing effect can not only improve the quality of materials, but also meet different process requirements. 2.the mixing speed is fast: Another advantage of the ribbon mixer is that the mixing speed is fast. Because the screw belt mixer uses spiral blades for mixing, it can complete the mixing of materials in a relatively short time. This can not only improve work efficiency, but also reduce the retention time of the material, thereby reducing the risk of material deterioration. 3. Wide range of application: The application range of the ribbon mixer is very wide. It can be used for the mixing of powder, particles, liquid and other materials, and can also be used for the mixing of materials with different gravity and different particle size. In addition, the ribbon mixer can also be customized according to different process requirements to meet the needs of different fields. 4. Easy to clean and maintain: The screw belt mixer has a simple structure and fewer parts, so its cleaning and maintenance is very convenient. In the process of use, the equipment can be easily disassembled and cleaned, so as to ensure the cleanliness of the equipment. In addition, the maintenance cost of the ribbon mixer is also very low, its parts replacement cycle is long, and the service life is long.
5. Safe and reliable Safety factors are fully considered in the design of the ribbon mixer. Its equipment operates stably and does not produce violent vibration and noise. In addition, the screw belt mixer is also equipped with safety facilities such as emergency shutdown, thus ensuring the safety of the operator. range of application Used in pesticides, veterinary drugs, food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, compound fertilizer and other solid-solid (powder and powder) solid-slurry (powder and glue) mixing, but also especially suitable for thick material mixing.
