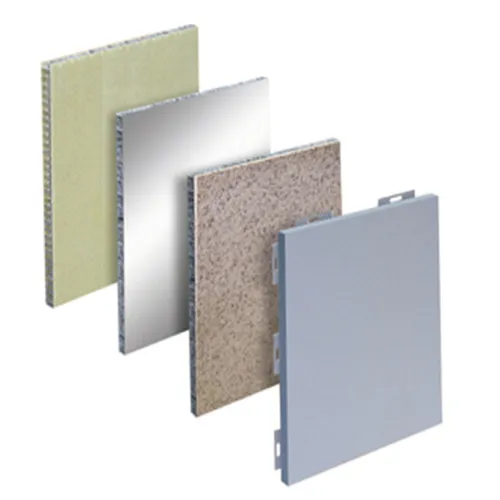

Copper Aluminum Composite Panel Stainless Steel Aluminum Composite Panel

Product Description

Owensking coated aluminum coil sizes:
Place of Origin: China
Brand Name: Owensking
Model Number: 1000-8000series
Application: Decoration
Thickness: 0.1-2.0mm
Width: 50-2000mm
Alloy Or Not: Is Alloy
Grade: 1000-8000series
Surface T.: PVDF Coated
Temper: O - H112
Name: PVDF coated aluminum coil
Color: Customer's Requirement
Surface: Smooth clean
Type: Coil\plate\Roll
Alloy: 1100/3003/3105/8011
Material: Aluminum Material
Coating: PVDF Coating
Package: Standard Seaworthy
Sample: freely
MOQ: 10-20 Tons
Supply Ability & Port
1. Port: Shanghai port in china
2. Lead Time : with in 25-35 days after the deposite payment
3. 50000/Tons per Month PE and PVDF color coating aluminum coil
Packaging & Transport
PE PVDF color coating aluminum coil packaged with;
1. Standard seaworthy exporting carton.
2. Wooden pallets on the bottom.
3. Waterproof plastic package.
4. Packing paper cover.
5. Or as required.
General Description of PVDF coated aluminium coil
Color coated aluminum coil is a material with excellent acid-resistance and alkali-resistance. The coating layer is even with bright color to last for a very long time. It is a green decoration material with the characters of environment protection, flame-resistance, and groovy colors. In nowadays, the color coated aluminum coil has become the popular material for top grade decoration.
PE PVDF Coating Testing Standards:

Coating	PVDF
Color	AS to all RAL color
Gloss	10-90%(EN ISO-2813:1994)
Coating Thickness	PE: more than 16-20 micron
	PVDF: more than 25 micron
Coating Hardness (pencil resistance)	More than 2h
Coating adhesion	5J(EN ISO-2409:1994)
Impact Resistance	No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
Flexibility (T-bend)	2T
MEK resistance	More than 100

Features of PE PVDF coated aluminium coil
1) Super peeling strength
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion, pollutant resistance
4) Even coating, various colors
5) Fireproof, excellent heat and sound insulation
6) Superior impact resistance
7) Lightweight and easy to process

Application of PE PVDF coated aluminium coil
1) Building exterior curtain walls and roof
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decorations
5) Advertisement board display platforms and signboards
6) Wallboards and ceilings for tunnels
7) Industrial materials, materials for vehicles and boats
