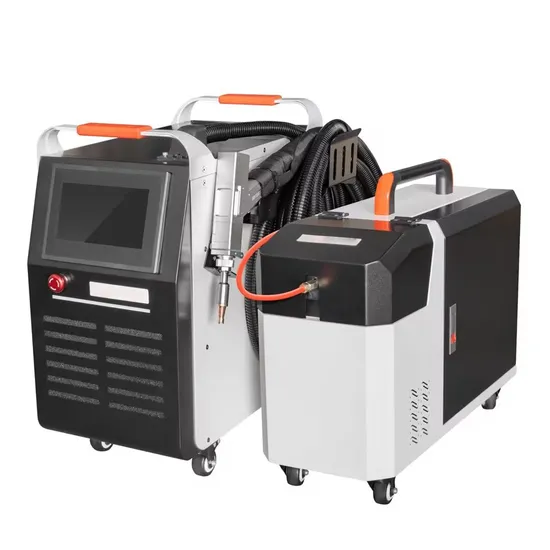

Automatic Hand-Held Laser Aluminum Alloy and Aluminum Wire Welding Machine

Product Description

Technical parameters:
Model: DPH-1000SC, DPH-1500SC, DPH-2000SC
Laser power (w): 1000 / 1500 / 2000
Operation mode: continuous / modulation
Central radiation wavelength (nm): 1070-1090
Pulse frequency (Hz): 50-5000
Cooling method: water cooling
Output fiber length (m): 10 (exposed 8)
Output power stability: <3%
Power requirement: AC200-240 (single phase)
Beam quality: 1.1
Focused spot diameter (mm): Φ0.3-1.5 (adjustable)
Weight (kg) (approximately): Net weight 150, (external export wooden frame) 200 including wire feeder
Dimensions (cm): 1000/1500/2000W
Dimensions: length 95* width 75* height 80
Wire feeder: length 60* width 30* height 40
Project/Method: Laser welding/argon arc welding
Heat input: Low heat/very high heat
Deformation: Slight or no deformation/easy to deform
Weld spot: Small weld spot, adjustable spot/large weld spot
Aesthetics: Smooth and consistent, no need for treatment or low treatment cost/unsightly, high grinding cost
Piercing: Not suitable for perforation, controllable/easy to perforate
Shielding gas: Argon-nitrogen required/argon required
Processing precision: Precision/general
Processing efficiency: 2-5 times/general
Operator safety: Irradiation light, almost no harm/strong ultraviolet light, radiation
Operator requirements: general worker/professional welder
Advantages:
1. Ordinary workers can get started in 2 hours
2. Small thermal impact, no deformation
3. Efficiency 2~10 times, no need for work permit
4. Smooth welds
5. No need to polish the welded surface
6. Modular control, safety guaranteed
Features and advantages:
1. Easy to learn, no welder certificate or professional welder required
2. No mask required, no arc radiation
3. The weld is smooth and beautiful, no grinding is required or the grinding workload is very small
4. By controlling the laser energy, the weld does not deform, or the deformation is very small
5. Low cost of use, power consumption, gas consumption, lenses, etc. are all low-cost consumption
6. The optical fiber is up to 10 meters long, which can be used for long-distance and large workpiece welding, and can reach 15 meters according to requirements
7. A variety of welding processes, including spot welding, seam welding, lap welding, flat welding, internal corner welding, external corner welding, ring welding, etc.
8. Stainless steel, broken steel, galvanized sheet plus wire welding, normal speed 0.7-1.5 meters/minute
9. Aluminum alloy plus aluminum wire welding, normal speed 1.2-2 meters/minute
