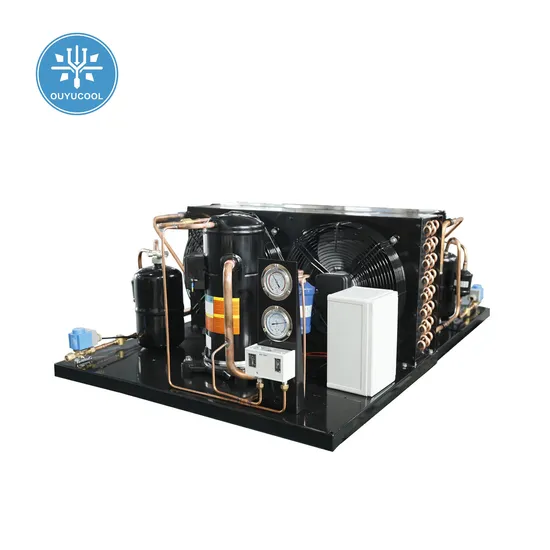

Ouyucool Cdi Series Open Pack Condensing Unit with Scroll Compressor for Cold Room

Ouyucool Cdi Series Open Pack Condensing Unit with Scroll Compressor for Cold Room

US$602.00-1,827.00 1 Piece (MOQ)

Basic Info.

Model NO.
CDI Series open pack Condensing Unit
Principle
Reciprocating Compressor
Application
Back Pressure Type
Performance
Low Noise, Variable Frequency
Mute
Mute
Lubrication Style
Lubricated
Drive Mode
Electric
Configuration
Stationary
Power Source
AC Power
Material
Cast Iron
Power
AC Power
Voltage
380V/50Hz
Cooling
Air Cooled
Capacity
Electric Mode
Transport Package
Wooden Pallet
Specification
As cusotmer′s requirement
Trademark
OEM or OUYU
Origin
China
HS Code
84143019
Production Capacity
2000/Year

Packaging & Delivery

Package Size
100.00cm * 80.00cm * 80.00cm
Package Gross Weight
50.000kg

Product Description

Product Description
40HP Condensing Unit with Screw Compressor for Cold Room Ouyu series products are applicable to the large size +20ºC~-20ºC room temperature refrigeration system, as the large size low temperature cold rooms, ice making, and blast freezing etc., Features:
1.Reliable system: famous brand compressor, PLC controller, high efficient oil separating system
2.German bbitzer low temperature screw compressor with features of high efficiency, long service life, tiny vibration and low noise
3.Products have complete set of world famous components, protection devices for compressor WITH over heat, over load, over discharging temperature and low oil level, over high/low pressure of oil flow etc.
Air cooled Middle&Low temperature units
Model CDI15 CDI22 CDI33 CDI43 CDI48 CDI55
Temperature(ºC) -15ºC ~ +5 ºC
Refrigerant R404A
Power supply 380V / 3P / 50Hz
Condenser Fan Qty 1 1 2 2 2 2
Voltage (V) 380 380 380 380 380 380
Fan Dia. (mm) 1Xφ350 1Xφ400 2Xφ350 2Xφ400 2Xφ400 2Xφ400
Cooling Capacity & Input Evap -5ºC Cap (W) 3820 5740 7840 9720 11450 13270
Input (KW) 1.76 2.5 3.32 4.2 4.79 5.24
Evap -10ºC Cap (W) 3070 4680 6370 7910 9310 11047
Input (KW) 1.82 2.51 3.35 4.2 4.81 5.27
Evap -15ºC Cap (W) 2430 3780 5120 6380 7510 9114
Input (KW) 1.88 2.52 3.37 4.2 4.82 5.28
Pipe Suction Pipe(mm) 19 19 19 19 19 19
Liquid Pipe(mm) 10 10 12 12 12 12
Overall Dimension L (mm) 780 780 1010 1120 1380 1380
W (mm) 700 730 780 780 830 830
H (mm) 750 780 720 880 860 910

Air cooled Middle & Low temperature units
Model CDI15 CDI22 CDI28 CDI36 CDI43 CDI55
Temperature(ºC) -25ºC ~ -15 ºC
Refrigerant R404A
Power supply 380V / 3P / 50Hz
Condenser Fan Qty 1 1 2 2
Voltage (V) 380 380 380 380 380 380
Fan Dia. (mm) 1Xφ350 1Xφ400 2Xφ400 2Xφ400
Cooling Capacity & Input Evap -20ºC Cap (W) 2330 3240 4120 5930 7230 8060
Input (KW) 1.79 2.25 2.63 3.59 4.44 4.9
Evap -25ºC Cap (W) 1880 2620 3340 4830 5910 6590
Input (KW) 1.73 2.2 2.57 3.44 4.28 4.47
Evap -30ºC Cap (W) 1500 2070 2610 3790 4780 5350
Input (KW) 1.66 2.12 2.44 3.3 4.17 4.95
Pipe Suction Pipe(mm) 19 19 19 19 19 19
Liquid Pipe(mm) 10 10 10 10 10 10
Overall Dimension L (mm) 780 780 1010 1120 1120 1380
W (mm) 700 730 780 780 780 830
H (mm) 750 780 720 880 880 910
