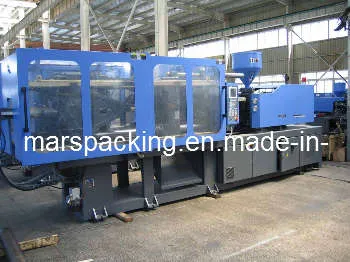

Preform Injection Moulding Machine (ZS3280)

Product Description

Preform injection moulding machine:
This unit of our plastic injection molding machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.
CLAMPING
-FEA designed double-toogle five-joint clamping machinery
-High rigidity mould platen with enlarged space between tie bar, fit for larger scope of the moulds
-Large moving die stroke with smooth & fast motion
-Electrical & mechanical safety protection device
-Automatic centralized lubrication system
-Gear regulating the mould driven by oil motor
INJECTION UNIT
-Twin cylinder balanced injection system
-High torque oil motor directly drives screw to complete the pre-injection
-Specific screw and barrel designs are available for processing different material requirements to ensure the production quality
-Multiple-stage control for pressure, speed, position to inject, keep pressure, charge material
CONTROL UNIT
-It utilizes the plastic injection moulding machine special-purpose computer with rapid response, interactive interface
-Regulate barrel temperature deviation automatically
-Multiple-unit plastic moulding data memory system
-Main electric components with world famous brand ensuring safety performance of electric devices
-It real-timely monitors various actions and gives automatic warning for its defects
-Clamp, injection, ejection action can choose linear displacement sensor for its control
HYDRAULIC UNIT
-Main hydraulic components with world famous brand, ensuring stable quality of the machine
-Low noise & rapid response oil pump system
-Adopt the cooling water flow distributor, controlling the cooling temperature easily.

ITEM		UNIT	DATA
	ZS3280		C
Injection Unit	Screw Diameter	mm	70
	Screw L/D Ratio	L/D	19.5
	Cylinder head Volume	cm 3	1070
	Shot Weight	g	1000
	Plastic Rate(PS)	g/s	62
	Injection Rate(PS)	g/s	350
	Injection Pressure	Mpa	135
Clamping Unit	Clamping Force	KN	3280
	Max mould Opening Stroke	mm	585
	Mould Thickness(Min-Max)	mm	220-620
	Distance Between Tie-Bars	mm	630×630
	Ejection Force	KN	70
	Ejector Stroke	mm	150
Others	Pump Motor Power	KW	30
	Heating capacity of screw cylinder	KW	16.55
	Oil tank capacity	L	620
	Rated Pressure of Oil pump	Mpa	16
	Machine Dimensions (L*W*H)	m	6.33×1.59×2.2
	Machine Weight	T	11
	Mould Orientation Ring Diameter	mm	Φ160H7
	Sphere Diameter of Nozzle	mm	SR15
