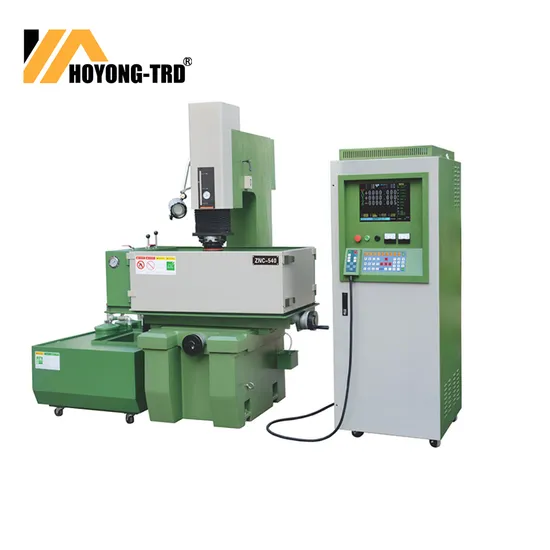

Factory Directly Znc540 CNC EDM Die Sinking Machine Hot Sales High Quality

Product Description

Machine Introduction:
1.Machine body structure with advanced castings of resin sand stress relieving.
2.Adopting precision CAD design and high precision frame structure.
3.X,Y axles movement surface with "TURCITE" and ball screw.
4.X,Y axles are made up V-shape and plane structure,ensuring the precision life of mechanical.
5.Adopting Japan SANYO DC servo motor,linear bearing and high strength and precision of integral castings.
6.Using high frequency induction hardening heating treatment.
7.The table which is precision grinded work table.
8.Using centrifugal high pressure oil pump of WALRUS and 10u filter system.
9.The castings are stress relieving cast iron.
10.The desktop uses high frequency quenching.
11.X,Y axles adopts the screw nuts of "model steel "which is produced by Taiwan.That may install ball screw optionally.
12.With functions of large area process and deep holes process.
13.X,Y axles adopt imported or the same level of ball screw.
14.Import accessories including electrode tip,automatic fire extinguisher,lamps,hand pull pump,page switch,gasket and centimeter bring up competitive machine tools.
Functions:
1).Intelligent compile:depending on experience or input electric current and depth of processing.
2).Sectioned automatically from thick to thin.The steps which may complete the processing at one time from thick→middle→thin to sleek.
3).Setting copper pairs with steel,graphite pairs with steel and copper pairs with hard alloy according to the electrodes and materials.
4).Multiple set selections to process the thin slice and large-sized workpieces.
5).Anti-carbon automatically detection.
6).Fire prevention and liquid level control automatically.
7).Translating between Chinese and English,metric and imperial.
8).Conform to the CE safety standard of power box.

Machine Type	unit	ZNC-540
Working table’s size	mm	800X480
Travel(X,Y,Z)	mm	500X400X250+250
The distance from the spindle under nose to working table	mm	270-770
Oil tank inside diameter dimension	mm	1250X750X500
Size of oil box	mm	1250X1150X590
Maximum electrode weight	mm	120
Working table load	kg	1200
Machine weight	kg	2600

Model number	ZNC 320 (=ZNC 350)	ZNC 450	ZNC 550	ZNC 650
Workbench size(mm)	600*300	700*400	800*480	1000*600
Working slot size(mm)	820*500*300	1120*620*420	1290*770*500	1700*1000*620
X-Y-Z travel(mm)	300*200*200	400*300*200	500*400*250	600*500*250
Spindle head stroke(mm)	200	200	300	300
Electrode lifting weight(kg)	60	70	200	200
Max. workpiece weight(kg)	500	750	1500	2250
Electrode plate to table distance(mm)	150-550	200-600	160-710	260-860
Working fluid capacity(L)	280	300	470	940
Dimension(mm)	1320*1220*2240	1400*1200*2050	1530*1850*2250	2150*1800*2400
