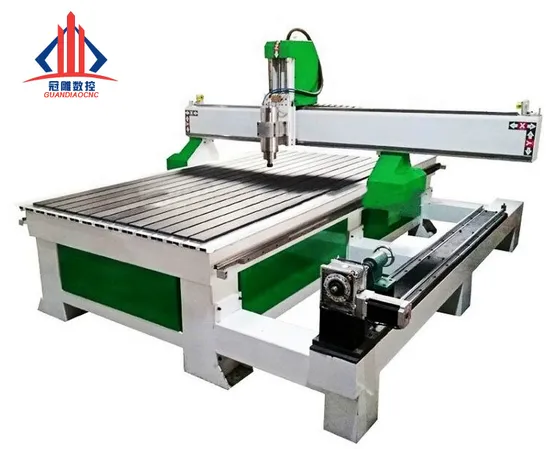

3D Relief Carving Cylinder Wood Router Machinery CNC Engraving Machine

Product Description

3d relief carving cylinder wood router machinery cnc engraving machine

This machine can make different kinds of sofa legs, table legs, bed legs, cabinet legs, stair handrails, also can make 3D
sculptures and complex artworks, can easily engrave 360 degree Human body, Buddhist statues,etc.
Technical Parameters

Mode	GD-6090	Gd-1325-4
working area	panle:600*900mm	1300*2500mm
	diameter:0-300mm length:0-1800mm	diameter:0-400mm length:0-2000mm
Table structure	steel structure
X Y Structure	Rack and Pinion TAIWAN HIWIN/PMI Square Guide Rails 20/25mm
Z Structure	Germany TBI Ball Screw
Spindle	3.2KW water cooling.24000rpm/min
Driver motor	China Stepper motor and leadshine driver
Inverter	Fuling or Sunfar
Control system	Nc studio/DSP
Working Voltage	380V/3PH/50HZ
Engraving command	G code*.ENG/ u00*.mmg*.plt
Software Compatibly	Artcam/Artengraver/Type3/V9/JD paint
Running Temperature	0-45 centigrade
Color	Red and black / blue and white(option)

Samples show

Company information Guandiao
The company has a factory building of 6,000 square meters and an office area of 1,500 square meters. The application is reasonable. The production area is constructed in strict accordance with the national safety and environmental protection policies to ensure a reasonable delivery period.
We have a well-established sales and marketing team, technical research and development team, and after-sales service team to meet the needs of the market and customers.
Packing & shipping
Our service
1. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
If you have any questions about us, please contact me with no hesitate.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
