CNC Hydraulic Automatic Press Brake Metal Master for Aluminum Carbon Steel for Manufacturing Plant Reliable Engine Bearing

Product Description

Product Introduction

CNC Hydraulic Automatic Press Brake Metal Master for Aluminum Carbon Steel for Manufacturing Plant Reliable Engine Bearing Features
High precision and fast speed
The main cylinders on both sides are synchronously controlled by electro-hydraulic servo valves imported from Germany and German grating ruler closed-loop control. The feedback is accurate and the slider runs accurately, so that the bending accuracy ensures the repeatable positioning accuracy of the slider.
Function

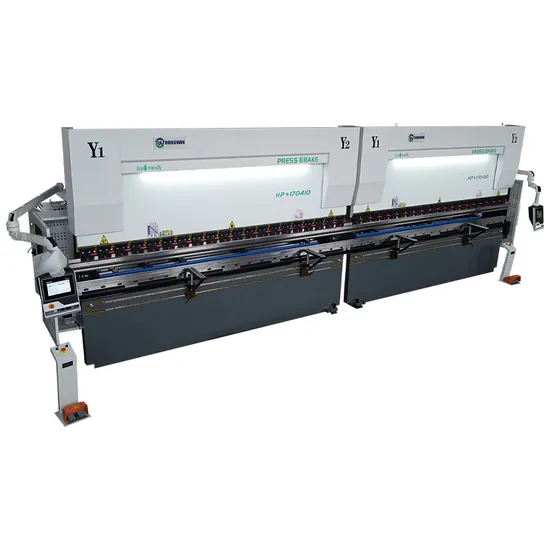

Two machines can be linked, three machines can be linked, etc. to improve efficiency. Standard configuration

Product advantages
Features: High precision and fast speed
1.On both sides of the main cylinder synchronization use Germany imports of electro-hydraulic servo valve and the Germany grating closed-loop control, accurate feedback, the slider running accurately, thereby bending the accuracy slider repeat positioning accuracy.
2.Adopts steel plate welded structure, with tempering process and vibration aging treatment, Elimination the working stress and eliminating welding stress caused deformation, ensuring the precision of the machine tool maintenance.
3.The fuselage uses the split assembled structure, convenient transportation, convenient processing, can ensure the accuracy of the machine tool.
4.Equip with a sectional die, the workpiece can be assembled into a required length, to suit the special processing requirements of workpiece, punch using safety trench structure (European standard), mold structure very convenient to disassembly and assembly.
5.Standard with DELEM DA69T CNC controller system.(Interchangeable system)
6.Rexroth of Germany's high-performance servo-hydraulic control system synchronization.
7.Italy GIVI grating rule simultaneous detection of position feedback encoder with both side.
8.Back gauge with high-performance servo motor and ball screw . ! automatic crowning compensation with CNC system. 9.Standard with a set of CNC press brake mould. Part upper-die is be readied, assemble to the length of needing work piece as to adapt to particular processing work piece
10.The mechanism of back stopper with multiple stopping shafts for complete functions is employed. The function work piece, as guide way, lead screw, bear etc. are imported to ensure the stopping precision of back stopper.
11. C-shaped plates are fitted on both sides of the machine body, and the high-precision grating ruler is mounted on the C-shaped plates, thus to avoid the influence over bending precision arising from distortion of machine body during bending process.
12.Oil cylinder from special manufacture and industry, seal rings imported from Germany, and pipe connections imported from EMB Germany.
Optional configuration

Crowning Table Workbench adopts mechanical torsion compensation system , as the mechanical compensation point , so the mechanical compensation effect is far greater than the hydraulic compensation , to achieve effective compensation without blind spots and improve the bending accuracy , to ensure the long-term stability.
Packaging & Shipping


Technical parameter

Model	Nominal Pressure (mm)	Workbench length (mm)	Poles distance (mm)	Throat depth (mm)	Slipper Stroke (mm)	MaxOpen (mm)	Main motor (KW)	Dimension (L×W×H)(mm)
30T/1600	300	1600	1250	170	90	195	3	1600×920×1660
30T/2050	300	2050	1450	170	90	195	3	2050×920×1660
40T/2200	400	2200	1850	245	100	330	5.5	2260×1200×1950
40T/2500	400	2500	2150	245	100	330	5.5	2560×1200×1950
50T/2500	500	2500	2150	245	100	330	5.5	2560×1200×1950
63T/2500	630	2500	2000	250	120	350	5.5	2560×1350×2120
80T/2500	800	2500	2000	250	120	350	7.5	2560×1350×2120
80T/3200	800	3200	2580	250	120	350	7.5	3260×1350×2120
80T/4000	800	4000	2980	250	120	350	7.5	4060×1350×2250
100T/2500	1000	2500	2000	300	130	400	7.5	2560×1465×2300
100T/3200	1000	3200	2580	300	130	400	7.5	3260×1465×2300
100T/4000	1000	4000	2980	300	130	400	7.5	4060×1465×2300
125T/2500	1250	2500	2000	300	130	400	11	2560×1465×2350
125T/3200	1250	3200	2580	300	130	400	11	3260×1465×2350
125T/4000	1250	4000	2980	300	130	400	11	4060×1465×2350
160T/3200	1600	3200	2580	340	150	450	11	3260×1620×2700
160T/4000	1600	4000	2980	340	150	450	11	4060×1620×2700
160T/5000	1600	5000	4000	340	150	450	11	5060×1620×2850
160T/6000	1600	6000	5000	340	150	450	11	6060×1620×3000
200T/3200	2000	3200	2580	340	150	450	15	3260×1620×2700
200T/4000	2000	4000	2980	340	150	450	15	4060×1620×2850
200T/5000	2000	5000	4000	340	150	450	15	5060×1620×2850
200T/6000	2000	6000	5000	340	150	450	15	6060×1620×3000
250T/3200	2500	3200	2580	400	200	500	18.5	3260×1700×2900
250T/4000	2500	4000	2980	400	200	500	18.5	4060×1700×2900
250T/5000	2500	5000	4000	400	200	500	18.5	5060×1700×3000
250T/6000	2500	6000	5000	400	200	500	18.5	6060×1800×3200
300T/3200	3000	3200	2580	400	200	520	22	3260×2000×3000
300T/4000	3000	4000	2980	400	200	520	22	4060×2000×3000
300T/5000	3000	5000	4000	400	200	520	22	5060×2000×3200
300T/6000	3000	6000	5000	400	200	520	22	6060×2100×3400
350T/3200	3500	3200	2580	400	250	570	22	3260×2000×3000
350T/4000	3000	4000	2980	400	250	570	22	4060×2000×3000
350T/5000	3000	5000	4000	400	250	570	22	5060×2000×3200
350T/6000	3000	6000	5000	400	250	570	22	6060×2100×3400
400T/3200	4000	3200	2580	400	250	580	22	3260×2000×3100
400T/4000	4000	4000	2980	400	250	580	22	4060×2100×2900
400T/5000	4000	5000	4000	400	250	580	22	5060×2000×3300
500T/4000	5000	4000	2980	500	300	640	37	4100×2300×3600
500T/5000	5000	5000	4000	500	300	640	37	5100×2450×4000
500T/6000	5000	6000	5000	500	300	640	37	6100×2450×4200
600T/4000	6000	4000	2980	500	300	660	45	4100×2300×3600
600T/5000	6000	5000	4000	500	300	660	45	5100×2450×4000
600T/6000	6000	6000	5000	500	300	660	45	6100×2450×4200
