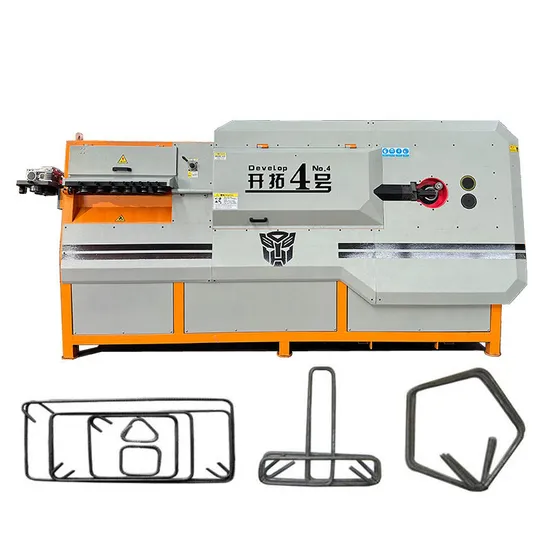

Popular Automatic Rebar Bending Machine Stirrup Bending Machine

Product Description

The equipment adopts PLC controller ,can process all kinds of stirrup and hook stirrup,it can automatically complete straighten,size,bend and cut. The maximum diameter can be bent is 14mm,It can process any 2D shapes ,widely used in construction site and processing plants .• Automatic wire feeding system ( CNC );• Split, multi-blade design (patented) to reduce consumption costs;• Large storage capacity can save more than 500 processing geometric graphics, high degree automation;• High power feeding motor to ensure bending bar accuracy;• High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs
Machine DetailsControl Panel
Using PLC programmablecontrol system,
highprecision, small error Traction Roller
provide the feeding function of reinforcing Straightening RollerAutomatic Cutting
Bidirectional ,can process various sepcial stirrups. Product Parameters

AUTOMAITC WIRE FEEDING SYSTEM (PLC)/MECHANICAL CUTTING
SINGLE WIRE BENDING (MM)	4-12ROUND BAR	4-10 REBAR
DOUBLE WIRE BENDING (MM)	4-10ROUND BAR	4-8REBAR
MAX BENDING ANGLE (°)	±180
MAX TRACTION SPEED(M/MIN)	75-110
MAX BENDING SPEED (°/S)	1000
ANGLE PRECISION(°)	±1
CUT LENGTH PRECISION(MM)	±1
AVERAGE POWER(KW/H)	7.5
TOTAL POWER(KW)	21(include compressor )
DIMENSION(MM)(L*W*H)	3660*1110*1700
WEIGHT(KG)	1550
PRODUCTIVITY(DOUBLE WIRE)(PCS/H)	2200-2400(FOR EXAMPLE 200*200MM SQUARE)
BENDING DIRECTION	DOUBLE DIRECTIONS
ADDITIONAL FUNCTIONS	Two end bend
CERTIFICATION	CE/ISO9001:2008
