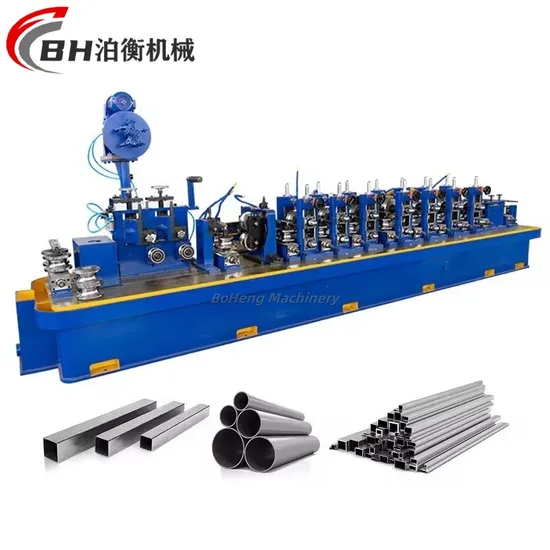

Steel Pipe Machine with High-Frequency Welding

Product Description

Model	Tube O.D (mm)	Thickness (mm)	Square&Rectangle (mm)	Thickness (mm)	Speed (m/min)
HG16	φ6~16	0.2~0.8			30~120
HG20	φ7~20	0.2~1.0			30~120
HG25	φ9~25.4	0.25~1.2			30~120
HG32	φ10~32	0.25~1.5	8X8~25X25	0.25~1.2	30~120
HG32		0.3~2.0	10X6~30X20	0.3~1.5	30~100
HG40	φ12.7~40	0.3~1.8	10X10~30X30 20X10~40X20	0.3~1.5	30~110
HG40		0.4~2.0		0.4~1.5	30~100
HG50	φ16~50.8	0.4~1.5	12.7X12.7~40X40 20X10~50X25	0.4~1.2	30~110
HG50		0.5~2.0		0.5~1.5	30~90
HG50		0.6~2.5		0.6~2.0	30~80
HG63	φ19.05~63.5	0.6~2.0	15X15~50X50 20X10~60X30	0.6~1.5	30~90
HG63		0.7~3.0		0.7~2.5	30~80
HG63		0.8~4.0		0.8~3.0	20~70
HG76	φ25.4~76.2	0.8~2.5	20X20~60X60 30X15~80X40	0.8~2.0	30~90
HG76		0.8~3.5		0.8~3.0	30~80
HG76		0.8~4.0		0.8~3.5	20~70
HG95	φ30~90	0.8~3.0	25X25~70X70 30X20~80X40	0.8~2.5	30~90
HG95		0.8~3.5		0.8~3.0	30~80
HG95		0.8~4.0		0.8~3.5	20~70
HG102	φ31.8~101.6	1.0~3.0	25X25~80X80 30X20~100X50	1.0~2.5	30~90
HG102		1.0~3.75		1.0~3.0	30~80
HG102		1.0~4.25		1.0~3.5	20~70
HG114	φ35~114.3	1.0~3.0	30X30~90X90 40X20~120X60	1.0~2.5	30~80
HG114		1.2~4.25		1.2~4.0	20~70
HG127	φ40~127	1.2~3.5	30X30~100X100 40X20~120X80	1.2~3.0	20~70
HG127		1.5~5.0		1.5~4.5	15~60
HG140	φ50~141.3	1.2~4.0	40X40~110X100 50X30~150X70	1.2~3.5	15~60
HG140		1.5~5.5		1.5~5.0	15~60
HG168	φ60~168.3	1.5~5.0	50X50~130X130 60X40~160X80	1.5~4.5	15~50
HG168		2.0~6.0		2.0~5.5	15~50
HG168	φ76.2~168.3	2.5~8.0	60X60~130X130 80X40~160X80	2.5~7.0	10~40
HG219	φ89~219.1	2.0~6.0	70X70~160X160 100X50~200X100	2.0~5.5	10~40
HG219		3.0~8.0		3.0~7.5	10~40
HG219		4.0~10.0		4.0~9.0	10~40
HG273	φ114.3~273	4.0~10.0	90X90~200X200 120X60~260X130	4.0~9.0	10~40
HG273		4.5~12.0		4.5~11.0	10~35

Detailed Photos
Company Profile
Hebei Yongyue Electromechanical Equipment Co., Ltd is a professional high-end cold-bending equipment manufacturer with an annual output of 100 sets of equipment, integrating independent research, production, development, sales and service.
Our company has long been committed to the development of straight seam welded pipe equipment, mold and cold bending equipment.
Our company's product quality is stable and cost-effective. Our Excellent design engineers and good processing technology ensure the quality and performance of the equipment.
Our company has been passed certifications of various systems, having a complete and scientific quality management system.
Our company's products designed not only sell well in China, but also exported to Southeast Asia, the Middle East, South America, North America, Europe and other countries and regions, won widespread praise and good reputation.
Our company all use computer software to optimize the design of cold bending equipment and engineering drawing, making drawing, installation drawing.
We have the first - class processing equipment, physical experiment equipment, non - destructive testing equipment and chemical analysis room.
We adopt the most advanced digital computer testing method to produce first-class-quality straight seam welded pipe equipment.
We own a perfect after-sales service network to provide you with fast and thoughtful service from pre-sale to after-sale.
Adhering to service principle of the quality as the root and of the credit as the base ,the general manager with all the staff welcome you to negotiate for our good cooperation.
Welcome to visit our company!
