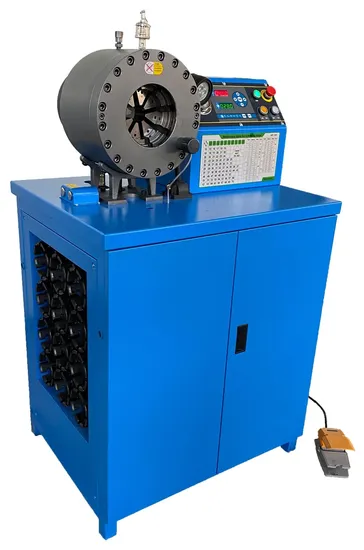

Traditional 2inch Hose Crimping Machine Computer Type

Product Description

Computer type control Hose crimping machine KM-91C-6 techincal data:

Crimp range	4mm-91mm
For hydraulic hose	2inch 4SP/ 64mm 4SP
Max opening without dies	125mm
Opening	28mm
Force	640T
Cycle time	7s
Voltage & Power	380V-50Hz-3pH
Optional voltage	220V, 440V
Pump	Piston pump 14.5min/L
Dies sets	10
System pressure	31.5MPa
Machine size	720*530*730mm
Weight without oil	310KG
Shelf+quick change	NO
Electric limit switch	Has
Electric control with touch screen	NO

Button type Hose Crimping machine KM-91C-6 introudtion
Button type hose crimping machine just has two function: Hand &semi-auto.

Key name	Function description
Emergency stop button	The machine stop, an emergency stop
Start button	Motor start
Tighten button	Machine tighten operation
Fine-tuning key	Adjust tighten volume and loosen volume
Mode select key	Mode selection, save (long press more than two seconds)
Tighten key	The same with tighten button
Loosen key	Machine loosen operation

Hose crimping machine KM-91C-6 dies

Die information of KM-91C-6
Hose I. D.	Die bore	Die length	Ferrule length
1/4"(6mm)	15mm	65mm	Less than 65mm
5/16"(8mm)	18mm	65mm	Less than 65mm
3/8"(10mm)	20mm	65mm	Less than 65mm
1/2"(13mm)	23mm	65mm	Less than 65mm
5/8"(16mm)	26mm	65mm	Less than 65mm
3/4"(19mm)	29mm	65mm	Less than 65mm
1"(25mm)	37mm	65mm	Less than 65mm
1 1/4"(32mm)	46mm	78mm	Less than 78mm
1 1/2"(38mm)	51mm	78mm	Less than 78mm
2"(51mm)	63mm	78mm	Less than 78mm
NOTE: We can make speical dies as your HOSE AND FERRULE SIZE.

Hose crimping machine KM-91C-6Special:
NEW foam inserts introduced to protect your machine from debris dropping into
The bottom of the head. With there you will minimize the risk of debris getting
Into the cylinder which could cause damage to seals and other moving parts of
The head. This will significantly extend the life of hydraulic hose crimping machine.

Hose crimping machine KM-91C-6 applition:
1. Suitable for high precision pressing of low and high pressure hose diameter, starting from 1/4" to 2" internal hose pipe.
2. Used rubber hose to transmit hydraulic pressure as there working power.
3. Used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
Hose crimping machine why not choose kangmai?
1. Kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.
2. The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine had is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.
3. Strictly testing and inspetion.
(A) for raw material, we will check again by our inspector as per international standard. Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad. However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on. Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment. Everything is ok, the inspector signed and machine allow to go out the facotry.
4. KANGMAI HYDRAULIC Pay attention to package so that the machine can reach to client safely:
5. KANGMAI HYDRAULIC PAYTATION SERVICE AND TECHINCAL SUPPORT:
(A) tell you, my dear clients- the route of vessal.
(B) take the photo of machine production condition and package condition to you-my clients.
(C) Apply free container yard of your port, my dear client give you engouh time to clear your country customer.
(D) when you get our hose crimping machine, I will tell you again how to operation the machine and how to maintaince the hose crimping machine.
(E) pay a return visit after you use our machine 2-3 hours. Offer some suggestion again about maintaince machine so that you can use kangmai machine for a long time.
(F) technical support: (1)24 hour technical support available
(2)We can ask our engineer to your mentioned address if
There is any need.
