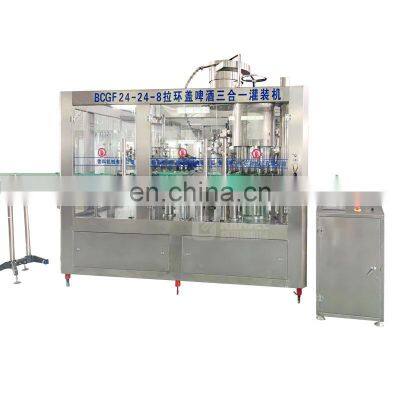

Automatic carbonated soda drink filling machine sparkling water production equipment for glass bottle
Product Description
Machine description and features:
1. This carbonated drink filling machine used move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
4. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
5. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
6. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
7. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
8. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
9. Adopting clamping bottle neck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottle neck way in the whole conveying process. When bottle type changes,you only need to change the board related with bottle diameter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
Carbonated soft drink washing filling capping machine

Automatic CSD filling machine production line packaging specifications					Material: SS304/316
Bottle material	Shape		Filling volume	Filling level(mm)	Neck type
Glass bottle	round bottle		100-1000ml	According request±1mm	26mm Crown cap
Adjustable specifications	Bottle size: bottle diameter≤110mm, bottle height≤340mm
	If using square bottles, then bottle separating system will be added
Filling temperature	2℃-40℃ level control: float ball and pneumatic butterfly valve.
Bottle labeling type		Packing system Min, Spec.			Palletizing system
Wet glue or self adjesive label		Film shrink packing Robert packing Carton packing		2*3 2*4 3*4 3*5 4*4 4*5 4*6 6-30bags/min	Low position Gantry palletizer Robot palletizer
User Ambient Conditions		Temperature: 2-40℃, Humidity: no dew
Bottle feed-in		Conveyor with screw for glass bottle

Detailed Images

Transmission:Adopt screw feeding bottles, different bottle diameter with different feeding bottle screw. Main transmission adopting frequency conversion motor will be sent to decelerate box through stair belt, and then lead the whole machine running. The bottles sent by enter bottle conveyor belt will divided into a fixed interval of one-way,and the bottle inverted by enter bottle clamp, then the bottles can be sent to filling machine’s enter bottle star-wheel. The bottle by lift-up motion is fixed on the bottom of filling parts.
	Rinsing Part:Rotary rinser is one of the key components, which is installed on the clamp, media distributor and other components. When the figure of the rotary bearing rotation, driven turret and the other components are installed on the rotating simultaneously, slewing bearing lubrication in order to concentrate lubrication.
Pnematic type Filling Valves: CO2 pre-charge Open the charge valve, form a pathway between bottle and alcohol tank’s CO2. The CO2 will filling into the bottle through the pathway. The charge valve will closed when the setting time reached, that means the CO2 pre-charge process end.
	Capping Part: The capper is made up of hopper, slide way, upper capper, lower capper, rise and fall parts, and preventing turning upright stanchion. The requirements of crown cap: Only when the height and diameter all accord with crown cap’s standard, the capper’s normal running can be guaranteed. The crown cap should be stored in the dry room.

Related Products

	Carbonation mixer and air cooled type water chiller Capacity: 1500liters-20000liters/hr Co2 content: ≥3.5 Carbonation mixer and Water chiller Process: Water, syrup, CO2 mixing system Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8 Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)
Soda Water Mixing System Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank The output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc. Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming. Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacket
	Rotary wet glue labeling machine Nominal production capacity: 10,000 bottles / hour Adjustable speed range: 3000-12000 bottles / hour Labeling type: body, back standard, neck (ring) standard Applicable bottle diameter: 50-115mm Applicable bottle height: 150-350mm Label width: max≤120mm Voltage: 380±10%V (can be made according to the specific) Frequency: 50Hz Power: 3.5KW
