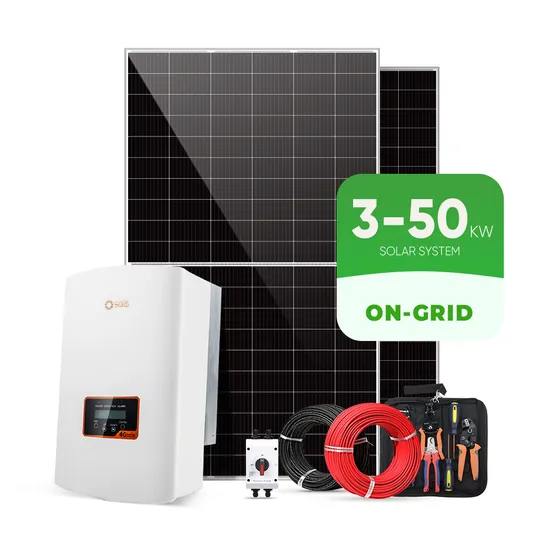

Sunpal Complete Solar Kit 5Kw 10Kw 15Kw On Grid Grid Tie Solar System For Home

Product Description

Product Description
Warranty
How it worksWhat's Included

Model	SP-3KW-ON	SP-5KW-ON	SP-10KW-ON
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	21 Pieces
DC Disconnect Switch	1 Piece	2 Piece	3 Pieces
Hybrid Inverter	S6-GR1P3K	S6-GR1P5K	Solis-1P10K-4G
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Model	SP-20KW-ON	SP-30KW-ON	SP-50KW-ON
Half Cut Mono 550W Solar Panel	40 Pieces	60 Pieces	105 Pieces
DC Disconnect Switch	4 Piece	8 Piece	15 Pieces
Hybrid Inverter	Solis-3P20K-4G	Solis-3P15K-4G 2 Pieces	Solis-1P10K-4G5 Pieces
DC Cable 4mm2	600 meter	800 meter	1000 meter
AC Disconnect Switch	1 Piece	2 Piece	5 Piece
MC4 Connector	20 Pairs	30 Pairs	50 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

System ComponentsHalf Cut Mono 550W Solar PanelPeak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kgOn Grid Solar InverterMax. efficiency 98.7%.
Wide voltage range and low startup voltage.THDi<1.5%, low harmonic distortion against grid.Multiple protections levels.2 MPPT design with precise MPPT algorithm.Intergrated Export Power Manager (EPM).Monitoring SystemOpen station supports one-click installation and registration
Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliabilityPV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional DC & AC Disconnect SwitchIP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly ToolPV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Product packaging
Sunpal Project Case
Our Factory
Company OverviewAs a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
