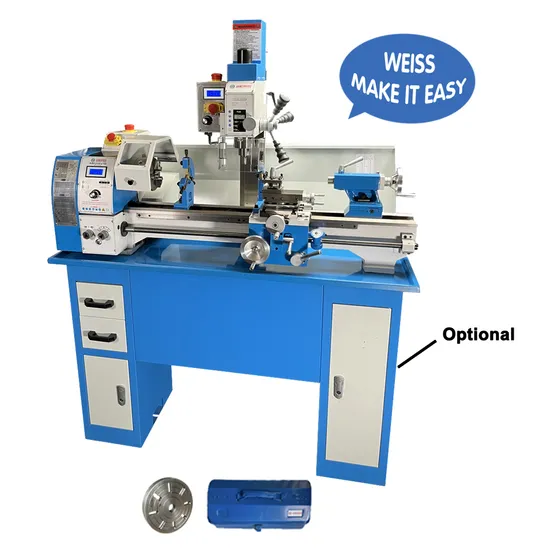

Weiss WBP250f Manual Lathe Machine with Milling Head

Product Description

Recommended Products
VM18L WBL250F WBP290F

1. An excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.
2. WBP250F adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one. It fully equipped with work-holding and tool-holding equipment and accessories to get you started turning, drilling, milling, chambering, boring, and facing
4. Power cross feed is available
5. Powerful brushless motors for both lathe&mill

Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBP250F
ITEM NO	10110306	125MM 3-JAW Chuck	Steady Rest
Distance between centers	550/750mm	Chip Tray	Follow Rest
Swing over bed	Ø250mm	Splash Guard	Face Plate 240mm
Swing over cross slide	Ø140mm	Toolbox and Tools	4-Jaw chuck 120mm
Width of bed	132mm		Threading Diail
Taper of spindle bore	MT4		2-Axis DRO (Magnetic Scales)
Spindle bore	26mm		3-Ais DRO(Magnetic Scales)
Number of spindle speeds	Variable		Stand
Range of spindle speeds	50-2250mm		Luxury Stand
Range of inch threads (imperial version)	8-56 T.P.I		Quick chage Tool Post (TOOA1)
Range of cross feeds	0.03-0.075mm		Turning Tools
Range of longitudinal feeds	0.06-0.32mm		ER25 collet fixture
Range of metric threads (metric version)	0.2-3.5mm		Backplate for 4-jaw chuck(125mm)
Top slide travel	65mm		ER25 collet chuck of mill
Cross slide travel	105mm		Turning Tools
Tailstock quill travel	65mm
Taper of tailstock quill	MT2
Motor (brushless)	1100W
Mill and Drill
Taper of tailstock quill	MT2
Spindle stroke	50mm
Spindle speed	50-2250rpm
Max.Distance spindle to table	280mm
Max.Distance spindle to column	170mm
Motor	600W
Packing size	1270x1520x930mm
Net weight	195kg

Detalis Headstock


· Spindle is supported by high precision, Class 5, adjustable tapered roller bearings
· Lathe digital speed readout tachometer on face of machine
· Variable speed from 50-2000rpm
Electronic Driving System
· WBP250F has 1.5HP POWERFUL brushless motor with silent running
· High quality electronics used throughout machine for long term reliability
· Braking resistors increase the stability of the electrical system
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users
Change Gear: Equipped with protective QKS8 door swtich,
All metal gears
Providing 33 kinds of inch threads and 21
kinds of metric threads cutting
Gearbox:right and left hand threads cutting, 3 kinds of feeding speeds Tailstock:with quick lock handle,drive hub,draw-down alignment

3-Jaw Self-centering Chuck Power longitudinal & cross feed Guideway induction hardened, precision ground

4-Way Tool Post Cross Slide with T-slot Table Metric/ Imperial Threading Dial
· Spindle RPM can be monitored on the digital readout.
· Spindle movement can be monitored on depth ruler in both inch or metric way
· Single speed belt drive system provides more quiet and easy operation, avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)
· GATES Tooth belt provide strong and precision transmission
· VM18L precision manual fine down feed can be adjusted with the min. feed rate up to 0.002"
· A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.
