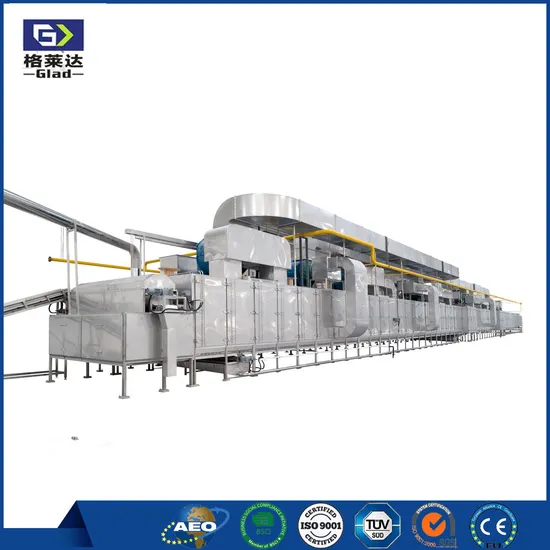

Commercial Use Sesame Washing and Drying Machines Sesame Roasting Machines

Product Description

Reference parameters
A:Single Layer Three Stages:

Model Item	S3-2.8-27.6	S3-2.8-34.4	S3-2.8-50	S3-3.8-29.8	S3-3.8-36.5	S3-3.8-52.1	S3-3.8-61.2
Drying Unit(Qty)	7	8	9	7	8	9	10
Bed width(m)	2.8			3.8
Drying Length(m)	27.6	34.4	50	29.8	36.5	52.1	61.2
Material Thickness(mm)	30-500
Drying Temperature (ºC)	50-140
Steam Pressure(MPa)	0.4-0.8
Steam Consumption (kg/h)	844-1688	1126-2252	1783-3564	1146-2293	1529-3058	2421-4841	2930-5860
Drying Time (h)	1.5-7	1.5-7	1.5-8	1.5-7	1.5-7	1.5-8	2.2-9
Evaporation Capacity(kg/H2O/h)	603-1206	804-1608	1273-2546	819-1638	1092-2184	1729-3458	2093-4186
Total Power (kw)	104	139	220	142	189	300	363
Overall Dimensions	27.6x4.33x3	34.4x4.33x3	50x4.33x3	30x5.43x3.2	36.7x5.43x3.2	52.3x5.43x3.2	61.3x5.43x3.2
Total Weight (kg)	11000	14000	20000	16000	19000	26000	31000

B:Two pass Two Sages

Multilayer bed plate Dryer
Model Item	T2-2.8-26.4	T2-2.8-33.1	T2-2.8-52.2	T2-3.8-26.4	T2-3.8-33.1	T2-3.8-52.2
Mesh Belt(m)	2.8			3.8
Drying Length(m)	26.4	33.1	52.2	26.4	33.1	52.2
Material Thickness(mm)	30--500
Drying Temperature (ºC)	50~140
Steam Pressure(MPa)	0.4~0.8
Steam Consumption (kg/h)	844-1688	1126-2252	1783-3564	1146-2293	1529-3058	2421-4841
Drying Time (h)	1.5-7	1.5-7	1.5-8	1.5-7	1.5-7	1.5-8
Evaporation Capacity(kg/H2O/h)	603-1206	804-1608	1273-2546	819-1638	1092-2184	1729-3458
Total Power (kw)	104	139	220	142	189	300
Overall Dimensions	27.6x4.33x3	34.4x4.33x3	50x4.33x3	30x5.43x3.2	36.7x5.43x3.2	52.3x5.43x3.2
Total Weight (kg)	11000	14000	20000	16000	19000	26000

Reference Photos of Our Projects:
Features
1.It reduces the labor,improves operationg efficiency;
2.It has reasonable heat distribution design to make the airflow uniformity,thus ensure the uniform roasting resulting obtainable;
3.It has integrated cooling system to prevent the over-roasting and keep the nuts at the optimum condition.
4. It has facility designed to realize the recirculation of roasting air.hence decreases the enengy consumption.
5.Every door on both sides can be opened for easy cleaning.
6.Different areas are insulated for minimum heat loss and lowest running cost.
Q:Are you a trading company or a factory?
A:We are a a company integrating industry and trade
With rich experience in food processing machinery.
Q:How do you guarantee the quality of the machine?
A: We have export experience for years and all machines will be strictly tested before shipment.
Q:Can the voltage of the machine be adapted ?
A:We can adapt the machine to your needs to match your local voltage.
Q:Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q:Can I go to China and visit your factory?
A:Sure, we are in Shandong, China, welcome to our factory.
Q:Do you have operation manual with the machine?
A:Yes, of course, it is in English version.
Q:Can you offer us the necessary paper to do the customs clearance?
A:Yes, we will send you Full set of documents like COO CL PL BL…, and we'll also meet your other demands.
Q:How about the packing?
A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film.
Q: What are our payment terms?
A: Normal payment terms are T/T, L/C, Western Union, Paypal. Other payment terms can be negotiated.
Q: What about the warranty?
A: One-year warranty. During the warranty period, if machine parts are damaged (fast-wearing parts excluded), we will provide new parts for free.
