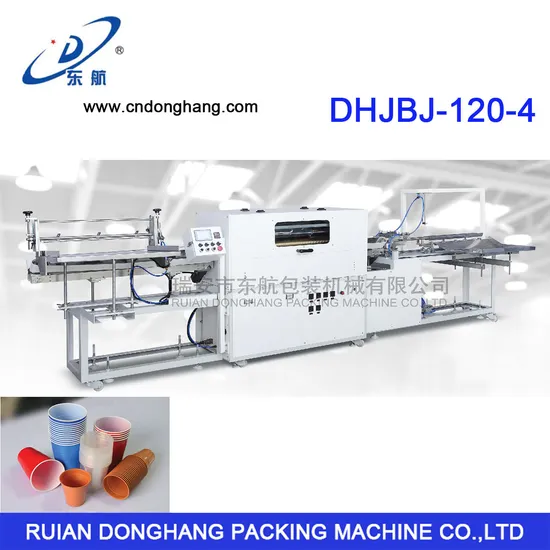

Cup Lid Cured Machine Model Dhjbj-120-4
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
DHJBJ-120-4
Making Method of Parison
Feeding Cup,Curling,Completed Cupand Stacking
Automation
Automatic
Computerized
Computerized
Certification
CE
Power
380V/50Hz
Weight
0.9t
Air Pressure
0.6MPa
Size
5200*1100*1300mm
Transport Package
Wooden Packaged or Stretch Film Packaged
Specification
CE, SGS
Trademark
DONGHANG
Origin
China
HS Code
84774090
Production Capacity
50 Sets/Month
Product Description
Product DescriptionThe machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup.
we will depend on your different cup to make the different screws, then the end products will be much better.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
Technical data:
| Max. Speed of Curling | 400-800pcs/min |
| Max. Dia. Of Curling | 50-120mm |
| Main Motor | 2.2Kw |
| Feeding Motor | 0.09Kw |
| Heating Power | 13Kw |
| Overall Size | 5000×1100×1300mm |
| Power | 380V/60HZ |
| Weight | 1T |
| Air Pressure | 0.6MPa |
