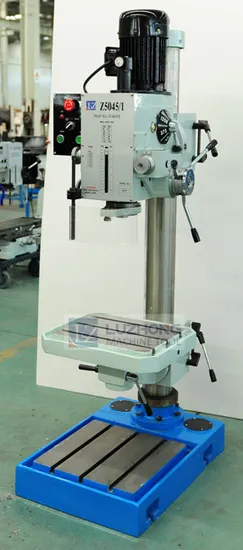

Auto Feed Floor Stand Vertical Drilling Machine (Z5032/1 Z5040/1 Z5045/1)
Basic Info.
Model NO.
Z5032/1 Z5040/1 Z5045/1
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
ISO 9001
Condition
New
Name
Auto Feed Floor Stand Vertical Drilling Machine (Z
Max.drilling dia.
32/40/45mm
Max.travel of headstock
250mm
Max.travel of worktable bracket
600mm
Worktable size
380*300mm
speed of motor
1400 rpm
Transport Package
Plywood Case
Specification
1850x750x1000 mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459290000
Production Capacity
500 Sets
Product Description
Auto Feed Floor Stand Vertical Drilling Machine (Z5032/1 Z5040/1 Z5045/1)Product Description
Product Parameters
Product main technical Specifications:
| Specifications | Z5032/1 | Z5040/1 | Z5045/1 |
| Max.drilling dia. | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Step of spindle auto-feeding | 6 | 6 | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
| Max.distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max.travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
| Max.travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size of avaliability | 380×300mm | 380×300mm | 380×300mm |
| Swivel angle of table horizontally | 360° | 360° | 360° |
| Table leaned | ±45° | ±45° | ±45° |
| Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm |
| Motor power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| speed of motor | 1400 r.p.m | 1400 r.p.m | 1400 r.p.m |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 437kg/487kg | 442kg/492kg | 442kg/492kg |
| Packing size | 1850×750×1000mm | 1850×750×1000mm | 1850×750×1000mm |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
