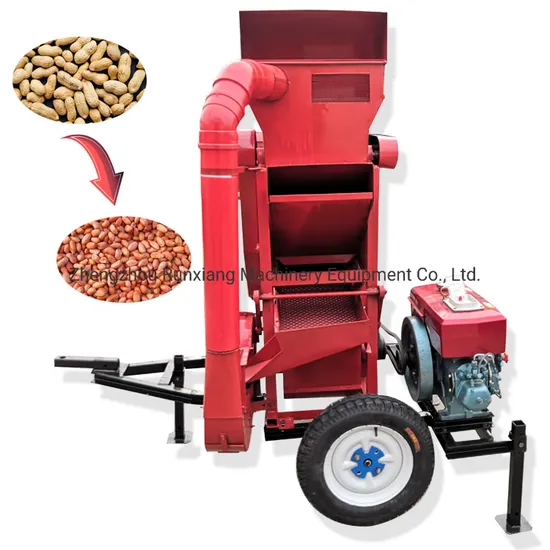

1500kg Capacity Peanut Shelling Machine Groundnut Sheller Skin Peeling Machine

Product Description

1500kg capacity Peanut Shelling Machine Groundnut Sheller Skin Peeling Machine
The Feature of the peanut sheller machine:
1. Lower energy consumption,
2. Compact design
3. Occupy smaller space
4. Easy to operate and maintenance.
Advantages of 1000kg/h Industrial Groundnut Dehull Shell Removing Equipment Peanut Shell Opening Machine:
1. Efficient, shelling rate better than 98%, breaking rate less than 4%.
2. Various capacity available for different applications
3. Optional dust removal type and double shelling type (two times shelling)
4. Optional electric motor,diesel engine or gasoline engine powered.
5. Movable wheels or advanced wheels with frame.
Working principle
peanut/groundnut sheller is a middle type peanut processing machine, it is easy to operate & install,
easy to move, low cost, good cleaning performance. May process 400-500kg/h, productivity is 280-320kg/h. It can be matched with 2.2kw 220v, 50hz electric motor, also can be matched with 8hp air
cooling diesel engine, for rural areas or African market where the electricity not so available.

Introduction of peanut sheller(single model):
The machines are used for shelling the hard cover to get the peanut seeds and its hard cover, the seeds is used for the food or the raw materials for the oil plant; The cover could be pelleted for the fuel.

Type	WSTK-1500	WSTK-1000	WSTK-600	WSTK-400
Rotary drum length	90	65	45	30
Rotary drum rolling speed	220r/min	227r/min	270r/min	305r/min
Capacity	1500 kg/h	1000 kg/h	600 kg/h	400 kg/h
Motor	11kw	7.5kw	4kw	2.2kw
Air blower speed	1067-1300r/min	1064-1194r/min	987-1252r/min	1712-1561r/min
Screen frequency	575/min	574/min	596/min	508/min
Breakage	<3%	<3%	<3%	<3%
Clean rate	>98%	>98%	>98%	>98%
Noise	<85 DB	<85 DB	<85 DB	<85 DB
Size	2200*1575*2300mm	1945*1320*2200mm	1470*1020*1650mm	1291*652*1720mm
Weight	1020kg	760kg	340kg	190kg

Why Choose Us
1.We are the direct manufacturer.
· All the machines we sell are made by ourselves with low price and high quality.
2.Perfect service system.
· If any interest on our machine, please feel free to contact me and let me know your requirement on capacity and material size.
· We are professional machine manufacturer, we will help to choose the most suitable machine for you.
· Whole plant design and drawings are free after set order.
· Quality Commitment: Quality Warranty, Grantee Period: 1 year.
· Supply wearing parts with favorable price and long term after-sales service.If you need, we will dispatch professional engineer for installation, trail and worker training if needed.
3.If you are new for this business,we will help you.
Many thanks for your trust.we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
Except industrial peanut shelling machine,our company also have Mini model peanut sheller machine as follows:
