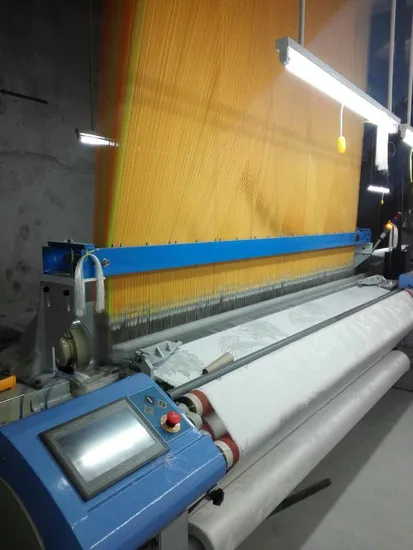

High Speed Four Color Air Jet Weaving Machine in Turkey

Product Description

high speed four color air jet weaving machines in turkey
The JLH9200 is completely new.Our accumulated experience has given form to a very new air jet loom.
We re-thought all the basics.
We redesigned each section,of the loom from the ground up including the frame structure,the shedding,the beating, the weft insertion,the let-off and the take-up motion.
The JLH9200 appropriately deals with tasks like productivity,versatility,and product development in a competitive weaving market.
Air jet loom main advantage
1.Environment Protect
The ground vibration is 25% lower than old model air jet loom by high strength frame structure.Because of high quality pneumatic components and the perfect combination of new type of machine structure,the electronic power consumption reduced about 10% than other air jet loom
2.High strength frame structure
Frame structure is made of two-side box type gear box, beam and bracket in middle, which can produce excellent product even for producing heavy or high density fabrics.
3.New cloth-pressing roller lifter
When guiding cloth, double cloth-pressing roller lifter can lift up and down roller at the same time; and then guide cloth through aperture with batching roller with saving much of labor and time. moreover, its very secure.
4.New double rear beam configuration
Depending on swing frame ,it can add one fixed beam that can rotate with yarn; it can keep press angle of inducing beam for yarn. meanwhile, it makes inducing stress more precise.
5.Automatic oiling device controlled by computer
6.Double swing the main jet device
Double swing the main jet device used in tandem swing boost the main nozzle to nozzle flow is more gentle on the role of weft,and further improve the machine performance.
7.Pneumatic tuck-in devices
By the electronic control of the jet stream within the folded end to make yarn, weaving side to achieve the fabric light, simple structur, easy to use and will not damage due to mechanical parts to affect the quality of cloth edge.
8.Super start major engine
Independently developed by our company, the super start major engine is featured with powerful power, steady speed and excellent performance, which renders the machine a longer life

Working range	Spun:7-80tex filament:40-500 dtex
Reed width (cm)	Nominal:190 230 280 340 Useful reeding width:reduct 0-60cm
Weft selection	6 color,4 color,2 color,single color
Motor	Super motor with 2.7kw-3.7kw (selected according to the certain model)
Weft picking	Electronic main nozzle+assistant nozzle+profile reed
Shedding	Negative cam machine,8 heald frame
	Positive cam machine,8 heald frame
	Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer's demands)
Let-off	Electronic let off-ELO
	Positive let-off device
	Flange diameter:800mm,1000mm
Take-up	Mechanical take-up (25pieces/inch-200pieces/inch)
	Electronic take-up(25pieces/inch-205pieces/inch)
	Upper and down temple(according to the varity of fabric)
Beating	Crank type multiple sley sword beating device,4 rods beating(280cm below),6 rods beating(280cm above)
Yarn storage	Electronic tumbler
selvedge	Leno yarn by planetary gear
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
lubrication	Oil lake for the main drive parts,thicker oil for centralized lubrication of the rest part.(pump)
Control	Weft:double optical feeler
	Warp:electronic sensor control
	Selveage:stop motion for selvage and catch cord yarn.
	Parking reason:display:4 color lamp display,main keyboard displays the information
Electronic box	The operation of the loom is controlled by computer
	Electromagnetic fixed brake
	Slow speed inching by variable frequency
	Main keyboard
