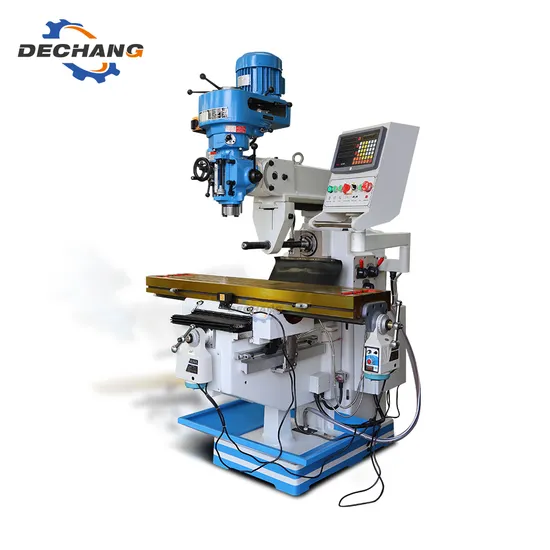

High Precision 4hw 5hw Horizontal Vertical Universal Turret Milling Machine

Product Description

High precision 4HW 5HW Horizontal Vertical Universal Turret Milling Machine
Product Parameters
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc.
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Technical specifications:

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/380/400	810/380/400
T slot(number-width-pitch)		3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	10-450	10-450
Distance between horizontal axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

Detailed Photos
