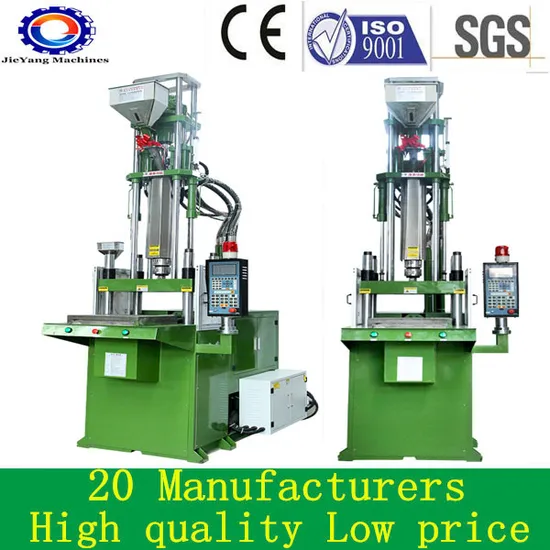

Small Vertical Plastic Injection Molding Machine for PVC Cable
Basic Info.
Model NO.
JY-160/200
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Brand Name
Jieyang
Injection Capaclty (Cm2)
34
Injection Rate
34.6
Automatic
Yes
After-Sales Service Provided
Overseas Service Is Available
Place of Origin
Dongguan
Machine Weight
0.85 T
OEM
Yes
Color
Can Be Customized
Delivery Days
3-5 Working Days
Transport Package
Standard Packaging
Specification
CE, SGS, ISO9001
Trademark
Jieyang
Origin
Dongguan, China
HS Code
8477101090
Production Capacity
200 Set/Month
Product Description
Parameter of Machine:| JY-160S2/JY-200S2 Technique specification | ||||||
| Model | Units | JY-160S2 | JY-200S2 | |||
Injection System | Screw Diameter | mm | Φ26 | Φ28 | Φ28 | Φ30 |
| Injection Pressure | Kg/cm2 | 1183 | 1019 | 1019 | 896 | |
| Theoretical Shot volume | cm3 | 55.7 | 64.6 | 64.6 | 74 | |
| Max. Shot Weight(P.S) | g/Oz | 50/1.7 | 58/2.0 | 64.6/58 | 74/67 | |
| Injection Rate | mm | 105 | 105 | |||
| Max.Screw speed | rpm | 0-215 | 0-200 | |||
| Temperature Control | ZONE | 2 | 2 | |||
Clamping System | Clamping Force | T | 15 | 30 | ||
| Platen Size | mm | 450*280 | 480*310 | |||
| Distance Between Tie Bare | mm | 265 | 285 | |||
| Min Mold Height | mm | 100/25 | 100/30 | |||
| Opening Stroke | mm | 190 | 180 | |||
| Max. Open Daylight | mm | 290/215 | 280/30 | |||
| Ejector Force | T | 1.3 | 1.3 | |||
| Ejector stroke | mm | 35 | 35 | |||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | 140 | ||
| Pump Output | L | 17.5 | 29.5 | |||
| Pump Motor Power | Kw | 2.2/3HP | 3.75/5HP | |||
| Barrel Heating Power | Kw | 1.8 | 1.8 | |||
| Total Wattage | Kw | 4.2 | 5.5 | |||
Others | Machine Dimensions (L*W*H) | m | 1.35*0.92*2.06 | 1.4*.90*2.37 | ||
| Shipping Measurement (L*W*H) | m | 1.6*1.0*2.23 | 1.7*1.1*2.23 | |||
| Machine Weight | T | 0.85 | 1.0 | |||
| Shipping Weight | T | 1.0 | 1.3 | |||
Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
RFQ:
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
Tips:
Please contact us freely if you need to manufacture other products, and we believe we can help you.
