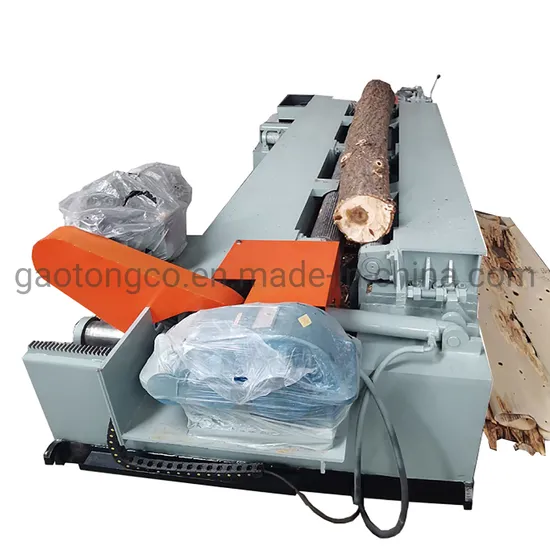

Eucalyptus Wood Peeling Machine Wood Peeler Tree Debarking Machine
| US$9,900.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GTCO
Warranty
1
Machine Type
Debarker Machine
Rotary Peeling Veneer Thickness
From 0.5mm to 4mm
Driver
Servo Motor
Processing Accessory
Centre CNC Lathe
Controlling Mode
CNC
Model No.
8 Feet Wood Veneer Production Line
Wood Logs Length
2700mm
Max Log Diameter
700mm
Residue Wood Diameter
35mm
Speed Adjust System
Yes
with Log Centering System
Yes
Peeling Machine Power
57kw
Hydraulic System
Yes
Veneer Stacker
New Model
Veneer Thickness
1 to 4mm
Transport Package
Standard Export Packing
Specification
7m*29m
Trademark
GTCO
Origin
Shandong, China
HS Code
8465960000
Production Capacity
50 Sets/Month
Product Description
| Model | GTCO 1400/2600 |
| Log dimension processing (D*L) | 500*1400 mm |
| Rotary knife specification (L*W*T): | 1500*140*12.7 mm |
| Diameter of rollers | 2*200mm,1*150mm |
| Line speed | 50m/min |
| Reference output | 30m3/day |
| Hydraulic system power | 5.5kw |
| Roller driving power | 11kw,7.5kw |
| Total power | 24kw |
| Feeding cylinder | 800mm*2 |
| Product dimension | 4000*1600*1800 mm |
| Weight | 3500kgs |
| Payment terms | T/T 30%,Balance before leave factory |
| Delievry time | In 20days |
Log debarker Machine Details
Technical Specifications
| Max. working length | 2600mm |
| Working diameter range | 22~700mm |
| Max. working speed | 70m/min |
| Veneer thickness | 0.5~4mm |
| Double rollers motor power | 11.5kw x 2sets |
| Screw Feeding motor power | 11kw |
| Rotary clipper motor power | 4kw |
| Machine size | 6000x2200x1700mm |
| Machine weight | 8500kgs |
| The Function: Removing wood bark, and make log round. The Structure: Wood debarker machine structure is simple, mainly consist by: machine frame, motors, cylinder, hydraulic station, knife The Working Principle: When start machine, put log into it, worker shake handle, machine will work. |
Packing and Shipping:
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
We also supply the whole veneer peeling machine production line.
Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.
1.Engineers available to service machinery overseas;
2.Warranty: 1year;
3.For the installation, seller will send the drawing for fabrication on site. Seller shall send
engineers to guide installation. Buyer shall supply all the necessary help during
installation. Air tickets and accommodation will be borned by buyer, our engineers should
be paid 100USD per day.
