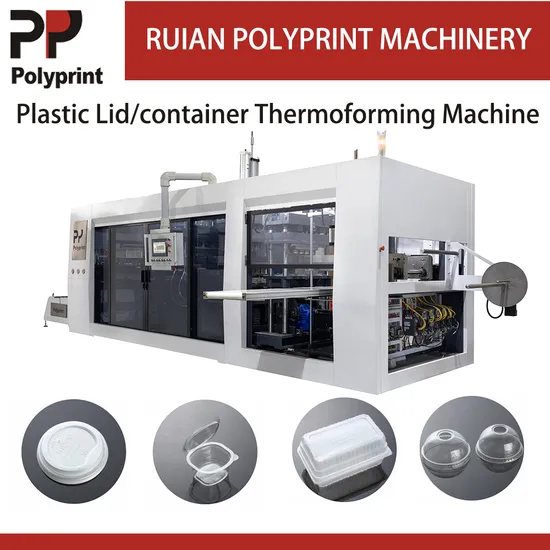

PP Fast Food Separating Plate Catering Tray Fruits Container Clamshell Box Cup Lid Blister Packing Forming Machine

Product Description

Product Description
PPBG-600 series automatic positive and negative pressure hot forming machine is the first innovative new product developed by our scientific researchers according to market demand and previous technical accumulation. This series of machine is a multi-station automatic machinery, not only effectively solve the PP/PS/PET/PVC/PLA plastic products such as capital, labor input in production is too large and complex production process, low product health security problems, which are very versatile, can be used in food, medicines, hardware, gifts and other plastic products production, equipment stability, elegant, cost-effective, favored by domestic and foreign customers!
Features
1) Control system: The machine realizes the full automatic control of the equipment through the combination of PLC, 3D industrial man-machine interface, servo motor, photoelectric, temperature module and other systems. The operation is simple and intuitive, reducing the requirements of operation technicians, and zero basic staff can operate is our pursuit.
2) Traction: High-power servo traction sheet feeding device ensures the traction length of sheet (thickness: 0.1mm-1.5mm) and accuracy: ±0.05mm.
3) Structure: The four driving stations of forming, punching, punching and stacking are independently controlled by Delta servo motor. The five-sided machining center imported from Germany has refined carving, which ensures high efficiency and stability of production with high precision.
4) Forming: far-infrared ceramic heating brick, super long upper and lower heating system and positive and negative pressure forming device are adopted to ensure the high difficulty material and temperature resistant material can be heated evenly, baked thoroughly, multi-function forming control, ensure the product thickness is uniform and the appearance is exquisite, and ensure the yield reaches 99.9%.
5) Molds: aluminum alloy (imported breathable aluminum) for forming molds is CNC precision engraving and milling, with positive and negative pressure and water circulation structure; The punching mould is made of DC53 steel hardware knife or laser knife (depending on the product); The punching die is made with a movable structure laser cutter, which improves the punching accuracy (within ±0.2mm error), reduces the cost of the die, shortens the manufacturing cycle of the die, and makes the die change simple.
6) Complete machine: welded steel box, firm structure, no deformation, bracket and box are formed by pressure, high compactness (weight 6500KG), shape with sliding door design, beautiful and generous, convenient maintenance and operation.
Product Parameters

	Description	PPBG-600
1	Suitable Products	Disposable Plastic lids, clamshell boxes, plates, (egg) trays etc.
2	Suitable Material	PP, PS, PET, PVC and PLA
3	Max. Sheet Width	640mm
4	Max. Forming Width	600mm
5	Max. Forming Length	500mm
6	Max. Forming Depth	100mm
7	Max. Cutting Speed	10-40 Cycles/min
8	Material Thickness	0.1mm-1.5mm
9	Heating Power	48KW
10	Motor Power	22kw
11	Machine Total Power	70kw
12	Power (3-phases, 4-wires)	380V/ 50HZ (different voltage with different price)
13	Pressure of Water Supply	0.2MPa
14	Water Consumption	0.3m3/h (Tap water or Circulating cooling water)
15	Air Exhaust Volume	≥1m3/min
16	Air Pressure	0.6-0.8MPa
17	Machine Install Size	7×2×2.4mm
18	Machine Packing Size	7.2×2.2×2.6mm
19	Weight	9000KG
20	Cutting Mould Type	Laser Knife

Detailed Photos
After Sales Service
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.
