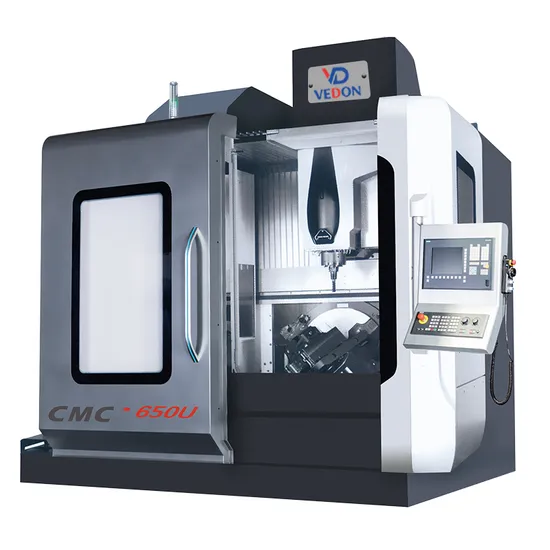

Five-Axis Linkage Vertical Machining Center CMC650 Ucentro De Mecanizado

Product Description

Overview
Application fields: Five-axis machining centers are widely used in aerospace, automobile manufacturing, mold manufacturing, medical equipment, machinery manufacturing and other fields, as well as automobile molds, automobile wheels, engine cylinder blocks, blades, automobile cylinder heads, accessory molds and other automobile parts, aerospace, wind power and other precision industries.
Machine Details
Built-in electric spindle
The electric spindle has good dynamic response performance and can quickly adjust the speed and torque according to processing requirements. This fast response capability is essential for realizing complex five-axis linkage processing, which can ensure the relative movement between the tool and the workpiece is accurate.
Tilt flip worktable
The tilt flip worktable is designed to realize 5-axis linkage processing function and can process a variety of products. The overall embedded design of the worktable, especially the special process of injecting the gap between the column and the worktable when fixing the worktable, has excellent vibration absorption capacity generated by the joint and the column.
Tool Magazine
The tool magazine of the five-axis machining center can accommodate many different types of tools, including milling cutters, drills, tapping tools, etc., to meet the needs of different processing tasks. The tool magazine can automatically select the appropriate tool for processing without manual intervention, greatly improving processing efficiency and flexibility.
CNC system
Programmable and diverse programs and standard setting functions are easy to operate, and can adjust the processing angle and posture in real time to ensure the accuracy and stability of the processing process. Through one clamping to complete the processing of multiple surfaces, the number of tool and fixture changes is reduced, thereby improving processing efficiency.

Specifications

Specifications		Unit	CMC650u	Remark
Travel range
X axis travel		mm	650
Y axis travel		mm	520
Z axis travel		mm	475
Spindle nose to table surface		mm	150-625
Table
Table size		mm	Φ650X540
T slot(width×distance×quantity)			5-14-100
Max table load		kg	300
Table tilting angle		°	±120
Spindle				CELLS
Spindle speed		rpm	40-12000
Spindle motor power		Kw	7.5
Spindle taper			BBT 40
Spindle input torque(Max)		Nm	90
Tool magazine
ATC	Tool magazine capacity		24	TEYON
	Max tool diameter(Full/Empty)	mm	80/150
	Max tool length	mm	300
	Max tool weight	kg	8
	Exchanging	s	1.75/5
Feeding system
Rapid feed	X,Y,Z axis	m/min	42
	B/C axis	r/min	60/100
Cutting feed speed		mm/min	1-10000
Accuracy
Positioning accuracy	X,Y,Z axis	mm	0.008
	B axis	Angular second	±5
	C axis	Angular second	±5
Repear positioning accuracy	X,Y,Z axis	mm	0.005
	B axis	Angular second	4
	C axis	Angular second	4
Controller
Model			SIEMENS ONE
Axis controlled		Axes	5
Axis linkage		Axes	3linear axis,2 rotary axis
Auxiliary functions
Power request			3 -380V±10%,50Hz
Air request		Mpa	0.5-0.7Mpa
Machine dimension
Length		mm	3970
Width		mm	3250
Height		mm	2870
Weight		kg	9500

Processing Effect
