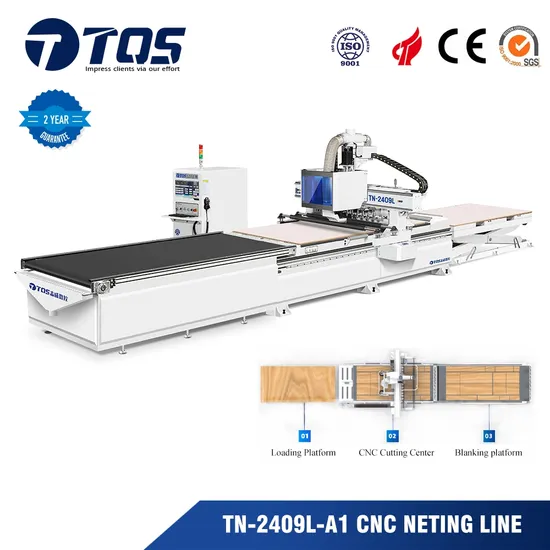

Tqs CNC Router/Nesting Machine CNC Wood Router Nesting Line Woodworking Machinery

Product Description

Working stroke	X axis	1220mm
	Y axis	2800mm
	Z axis	200mm
	Max. board thickness	70mm
Precision	Working precision	0.15mm
	Repositioning precision	0.05mm
Control system	LNC NC Control System
Servo system	MIGE 1.8KW Servo Motor
	MIGE Servo Driver
Speed	Max. idle speed	80000mm/min
	Max. cutting speed	15000-20000mm/min
Spindle	Spindle power	9KW HQD Air cooling spindle
	Spindle speed	24000r/min
Transmission	X,Y axis(Taiwan J&T 1.5M Grinded helical rack and pinion)
	Z axis Ball screw(Taiwan TBI precision TBI)
Linear guide way	German Loust / HTPM dust-proof 30mm
Reducer	ZD /Takamasa
Pneumatic components	AIRTEC / PUNAN
Position cylinder	5 pcs,X:2pcs Y:3 pcs
Inverter	INOVANCE/ZOCH
Code	G-CODE,PLT,UG,ENG,HPGL etc.
Compatible Software	Most Furniture design software (Alphacam, Yunxi etc.), TYPE3, Artcam, JD paint, UG,CAD etc.
Lubrication	Central lubricating pump
Table structure	Single deck design
	Vacuum sucking table
Voltage	AC380V/3PH/50H
Vacuum pump	Water recycling type power: 7.5KW

Body frame1. Solid welded steel body frame, with high rigidity.2. Body frame has been done annealing treatment, to avoid the deformation.3. Steel strips has been placed on the surface, which has been done machining, to ensure the flatness.
Spindle and tools changer1. Adopts HQD ATC type 9KW air cooling spindle, rotation speed as 24000rpm.2. Comes with 12 folds linear tools changer, allow the user to do the flexiable combination.3. HITECO 9KW spindle from Italian as option.
Board grapping device1. In order to achieve the automatic loading, machine comes with penumatic board grapping device.2. The operater can adjust the grapping height through the knobs on the top position.
System and servo 1. Control system as Weihong NC studio, with industrial computer control.2. System intergrated with simple CAM, allow you to do simple cutting route editing, also can input the DXF files from Autocad.3. All the servo motors as 1.0KW, with absolute encoder.
System and servo 1. Control system as Weihong NC studio, with industrial computer control.2. System intergrated with simple CAM, allow you to do simple cutting route editing, also can input the DXF files from Autocad.3. All the servo motors as 1.0KW, with absolute encoder.
Quick operation panel1. there will be one quick operation panel on the right side of the body frame.2. Allow you to operate the machine through buttons during revising the board.
Dual-pressing Rollers (optional)
The customer can choose the dual-pressing rollers according to the local requirements:1. thin board, when open the vacuum pump, the board will be wrinkled up.2. MDF or particle board with bad surface, especially the area with high moisture.
