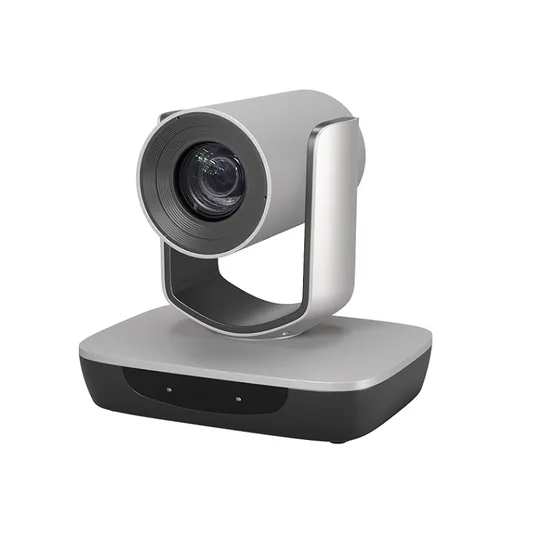

RS232 Control 1080P 60fps 10X Auto Focus HDMI USB3.0 RJ45 Video Conferencing Camera

Product Description

RS232 Control 1080P 60Fps 10x Auto Focus HDMI USB3.0 RJ45 Video Conferencing Camera
Model AMC-G310U3 AMC-G312U3 AMC-G320U3
Image Sensor1/2.8'' CMOS, 2.14MP
IRIS 4.3mm~43mm 4.14mm~47.08mm 4.7mm~94mm
Focal Length F1.6~F3.0 F1.6~F2.8 F1.6~F3.5

Field Of View 69°~8° 72.5°~6.3° 59.5°~2.9°
Optical zoom 10X 12X 20X
Digital Zoom 16X
Focusing System Auto/Manual/One Push/PTZ
Min.Illumination 1.0Lux
Shutter speed 1/50~1/10,000S
Gain Auto, Manual
White Balance Automatic, Manual, Automatic tracking, One Push, Static Color Temperature
BLC Support
Wide Dynamic Support
Exposure Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
S/N ≥50dB
PTZ
Pan Range -170°~+170°
Tilt Range -30°~+90° 0.1°~102°/
Pan Speed 0.1°~102°/s
Tilt Speed Image 0.1° ~ 90°/s
Filp Support
Preset Number 256
Interface
HDMI 1×HDMI:
Video resolution:1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25
Network 1×RJ-45:1×10M/100M
1. Video Output Format:Max 1080P60
2. Image Compression:H.264/H.265
3. Protocol:ONVIF/RTSP/RTMP/SRT/TCP/UDP
4. Audio Compression:AAC
5. Support Dual streams
USB 1×USB3.0:
1. Support UVC1.1
2. UVC Support:
H.264/H.265/MJPEG, Video resolution:1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25 YUY2/NV12, Video resolution:1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25
3. UAC Audio Format PC
Audio 1×LINE In, 3.5mm
Control Interface 1×RS-232 In, 1×RS-232 Out/RS-485
Power DC12V
