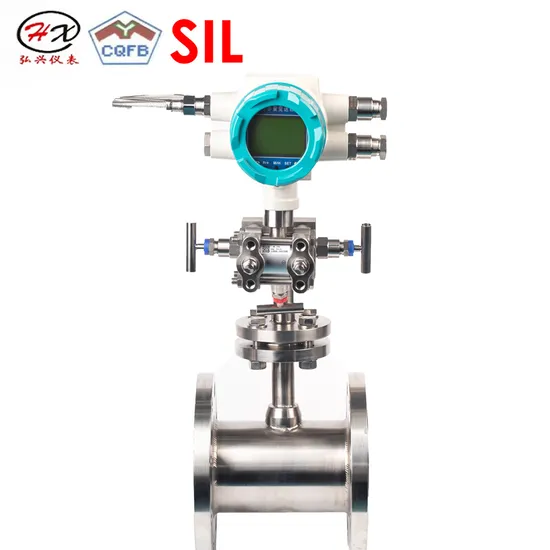

Smart Accuracy Anti-Corrosive Differential Pressure Liquid Flowmeter

Product Description

Smart Accuracy Anti-corrosive Differential Pressure Liquid Flowmeter

Product Description Overview
HX3051series capacitive pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure by selecting import key materials, elements and advanced technology to strictly assemble and test for use. Widely used in oil,food, electric plant, mechanic industry, pharmacy, etc.
Features
High accuracy and stability
2-wire system
Solid state components, pluggable printed circuit boards
Positive migration up to 500% and negative migration up to 600%
Damping adjustable
Perfect one-way overload protection
No mechanical moving parts and maintenance is less to work
Full series of unified mechanism and strong interchangeability of parts
Diaphragm materials optional
Explosion proof structure and 24-hour daily use
Product Parameters Temperature influence( Max. Range)

Type	Standard
Max. Range temperature drift	≤1.5%/60ºC	≤2.0%/60ºC
Min.range temperature drift	≤3.5%/60ºC	≤5.5%/60ºC

Static pressure influence( Max. Range)

Operating pressure(MPa)	Operating pressure error(Max. Range)% FS
	Range code	1	2	3	4	5	6	7
Max.range temperature drift		±0.5	±0.5	±0.5	±0.35		±0.65
Min.range temperature drift					±0.65		±1.25

HX3051DP	Differential Pressure transmitter
	Code	Measuring range
	3	0~1.24~7.46 KPa
	4	0~6.2~37.29 KPa
	5	0~31.08~186.45 KPa
	6	0~117~689.48 KPa
	7	0~0.34~2.07 MPa
	8	0~1.6~10 MPa
		Code	Output
		S	Intelligent( 4~20mA+Hart)
			Code	Structure Material
				Flange connector	Exhaust/drain valve	Isolating diaphragm	Flushing liquid
			22	316 St.steel	316 St.steel	316 St.steel	silicone oil
			23	316 St.steel	316 St.steel	Hastelloy C
			24	316 St.steel	316 St.steel	Monel
			33	Hastelloy C	Hastelloy C	Hastelloy C
			35	Hastelloy C	Hastelloy C	Tantalum
			44	Monel	Monel	Monel
				Code	Max.operating pressure(MPa)
				B	4
				C	10
					Code	Additional function
					M2	3 1/2LCD digital indictor
					B1	Pipe-bend installation palte
					B2	Plate-bend installation plate
					B3	Pipe-mount flat installation plate
					D1	Side relief valve on upper of pressure chamber
					D2	Side relief valve on lower of pressure chamber
					C1	Waist flange & 1/2NPT welding pressure-inducting connector
					C2	1/4 NPT welding pressure-inducting connector
					d	ExdllCT6Gb

Detailed Photos

Certifications
Packaging & Shipping
Company Profile FAQ 1. Q: Are you manufacturer or trading company? A: We are manufacturer which focuses on transducers for 10 years. 2. Q: What's your quality control system? A: ISO9001, Explosion proof Certificated, etc. 3. Q: What is the warranty of your products? A: Our warranty is 12 months after shipment. 4. Q: What is lead time of your product? A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items. 5. Q: Do you provide customized products? A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed. 6. Q: What is your MOQ? A: We have no MOQ limit, small quantity order is acceptable. 7. Q: What's the transport? A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea. 8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.
