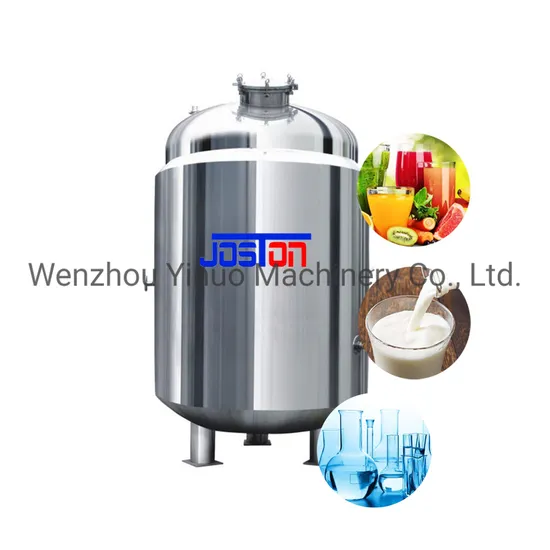

Stainless Steel 200 Liter 1000 Litre 5000 Gallon Vegetable Oil Milk Honey Liquid Vertical Storage Tank

Product Description

Brand New Alcohol Beverage Chemical Coconut Juice Collection Ce Stainless Steel Storage Tank is used to storage the pharmaceutical solution liquid ,food ,dairy liquid solution and water ,chemical solution etc field
Brand New Alcohol Beverage Chemical Coconut Juice Collection Ce Stainless Steel Storage Tank is made of stainless steel material , which is divided into tank shell , manhole, tank CIP spray ball, ,vent filter ,feed port and discharge port etc. The tank shell is polished inside surface as Ra<0.45um, and outside surface as Ra<0.8um. The liquid level gauge is used to observe the storage capacity in the tank. The tank CIPspray ball is used to clean the inside shell of tank.
The manhole can be used for maintenance, plus two feed inlets, which can be connected by pipes at the same time. There is a water outlet below, which can be installed with a valve, and the water can be discharged manually, and it will be closed after the water is discharged.
Characteristic of Brand New Alcohol Beverage Chemical Coconut Juice Collection Ce Stainless Steel Storage Tank:
1) .vertical type
2) Single layer ,double jacketed layers.
3) Quick open type manhole.
4) 360 degree CIP spray ball ,CIP/SIP online.
5) level sensor to indicate the inside liquid solution level .
6) Temperature sensor (gauge ) to indicator the temperature data.
7) Material is SS316L/SS304.
8) Volume from 50L ---50000L.
technology data specification :

Model Item	CG500	CG1000	CG2000	CG3000	CG5000	CG10000
Tank working volume L	500	1000	2000	3000	5000	10000
Inside Shell Working pressure Mpa	-0.1-0.3
Jacket working pressure MPa	0.3 ( if it have the jacket type )
jacket type	single fille ,limpet coil ,dimple coil
Inside shell Working temperature C	i<100 degree
Jacket Working temperature C	<130 degree
Dimension mm	Ø900X1700	Ø1000X2250	Ø1200X2700	Ø1500X2900	Ø1600X3800	Ø2000X4600

SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
