P3/P4/P5/P6/P8/P10 Outdoor Front Service LED Panel
| US$500.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
P5 outdoor
Pixel Pitch
8mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display
Average Power Consumption
350W / m²
Pixel Density
15625
Scanning Mode
1/4 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC
Brightness
More Than 6500 CD
Mini Order
1 Sqm
Standard Cabinet Size
1280mm X960mm X 110mm
Packed
Wooden Case or Flight Case
Transport Package
Wooden Case
Specification
960mm X960mmx 150mm
Trademark
NVD
Origin
Made-in-China
HS Code
85312000
Production Capacity
1000 Sqm/ Month
Packaging & Delivery
Package Size
110.00cm * 55.00cm * 110.00cm
Package Gross Weight
125.000kg
Product Description
Front open cabinet LED DisplayFix installation LED Display Screen cabinet view
P8 Outdoor LED Screen detail specification
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
| Specifications | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| Module size(mm) | 192×192 | 192×192 | 320×160 | 320×160 | 192×192 | 320×160 | 320×160 |
| Module resolution (dot) | 64×64 | 64×64 | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Scanning | 1/16S | 1/16S | 1/20S | 1/8S | 1/8S | 1/5S | 1/2S |
| SMD | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Maintenance | Back | Back | Back | Back | Back | Back | Back |
| Installation | Back | Back | Back | Back | Back | Back | Back |
| Cabinet size(mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Density(dot/) | 16000000.00% | 11111100.00% | 6250000.00% | 4000000.00% | 2777700.00% | 1562500.00% | 1000000.00% |
| Brightness(cd/) | 4200-4500 | 4200-4500 | 5000-6500 | 5000-6000 | 5000-6000 | 4000-5000 | 6000-7500 |
| Max. Power Consumption | 100000.00% | 100000.00% | 90000.00% | 80000.00% | 80000.00% | 80000.00% | 100000.00% |
| Average Power Consumption | 35000.00% | 35000.00% | 30000.00% | 40000.00% | 30000.00% | 30000.00% | 50000.00% |
| Cabinet weight (kg/m²) | 40kg | 40kg | 40kg | 40kg | 40kg | 40kg | 40kg |
| Cabinet material | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| IP rate | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >140° | >140° | >140° | >140° |
| Best viewing distance | >2.5m | >3m | >4m | >5m | >6m | >8m | >10m |
| Input Voltage | AC110V - AC220V | AC110V - AC220V | AC110V - AC220V | AC110V - AC220V | AC110V - AC220V | AC110V - AC220V | AC110V - AC220V |
| Module Max. current | 4.5-5.5 | 4.5-5.5 | 5.5-7.5 | 5.5-7.5 | 3.5-5.5 | 5.5-7.0 | 8.0-10 |
| Temperature-operating | -10ºC~60ºC | -10ºC~60ºC | -10ºC~60ºC | -10ºC~60ºC | -10ºC~60ºC | -10ºC~60ºC | -10ºC~60ºC |
| Humidity-operating | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
LED Screen Project ;

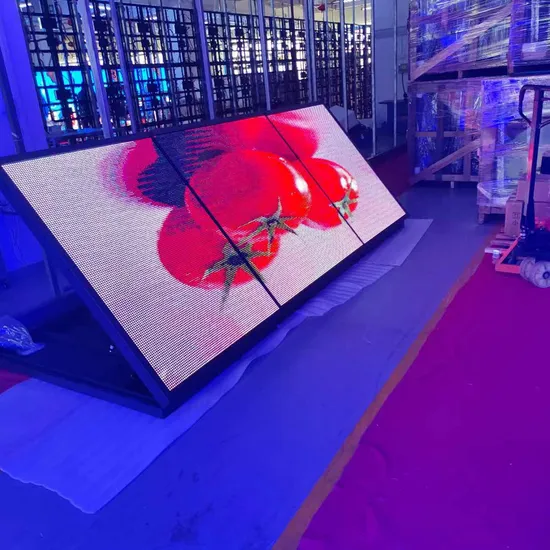

Front service led display in the factory assemble and testing picture
The detail structure
