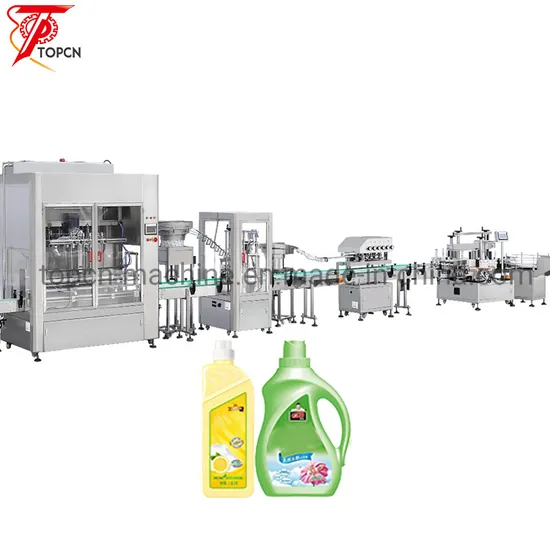

Good Price Automatic Detergent Hotel Bottle Hand Wash Liquid Soap Shower Gel Body Cream Lotion Shampoo Filling Machine

Product Description

This Automatic Filling Line can be customized to fill various products,such as : Laundry detergent, shampoo, softener, dish soap,conditioner, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.
Good Price Automatic Hand Wash Liquid Shampoo Soap Shower Gel Automatic Lotion Filling Machine
Product Paramenters

Parameters of 6 Self-Flow Filling Machine
Number of filling heads	2,4,6,8,10,12 Can be customized
Filling capacity	0.5L-5L
Filling form	Self-flowing multi-headed into the bottom of the bottle and fast and slow side edge
Filling speed	6-8 bottles / minute (4L bottle)
Filling accuracy	±1%
Material	The filling frame is made of 304# stainless steel
Program control	PLC + touch screen
Filling mouth and trough contact liquid parts	316# stainless steel, silica gel, POM
Air pressure	0.6-0.8MPa
Conveyor belt	114mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm off the ground
Conveying motor	750W variable frequency speed regulating motor
Power	About 2.2KW/380V three-phase five-wire
Main trough capacity	200 liters (with liquid level switch, the feed tube is inserted into the bottom, and the trough cover needs to prevent foam overflow).
Conveyor belt entrance with bilateral bottle placing table	2000X300mm (length X width)

Parameters of Air Claw Type Capping Machine
Suitable specifications	According to the sample provided by the customer
Cover method	Vibrating plate cover
Cap form	Gripper grip cap
Speed	15-20 bottles / minute
Conveyor belt	114mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm from the ground
Material	The frame is made of 304# stainless steel
Program control	PLC + touch screen man-machine
Machine power	About 800W
Air pressure	0.6-0.8MPa
Power supply	AC220V, 50/60HZ single phase.

Parameters of Linear Capping Machine
Lower cover method	Manual cover (the nozzle bottle needs to be manually placed, and the nozzle cover direction needs to be consistent)
Suitable specifications	According to the sample provided by the customer
Cap form	8-round counter-type cap
Speed	20-30 bottles / minute
Material	The frame is made of 304 stainless steel
Program control	PLC + touch screen
Machine power	200W
Air pressure	0.6-0.8MPa
Conveyor belt	Shared with the filling machine

Parameters of Double Side Labeling Machine
Applicable labeling position	Partial bottle and double side stickers
Applicable product range	Provide samples according to customers
Applicable label rang	Sample provided by customer
Production capacity	>30 bottles / minute
Labeling accuracy	Plane ± 1m (except for the error of the partial bottle itself)
Voltage	220V
Power	About 1.2KW
Conveyor belt	114mm wide POM chain belt, speed 0-15 m / min, height 750mm ± 25mm from the ground
Program control	PLC + touch screen man-machine interface
Applicable paper roll	inner diameter 76mm, outer diameter maximum 300mm
Conveyor belt	shared with the filling machine

Parameters of Bottle Carousel Machine
Suitable specifications	According to the sample provided by the customer
Turntable diameter	800mm
Height of the table top from the ground	750mm
Material	The turntable adopts 304# stainless steel
Power supply	220V, 140W, 50HZ single phase
Drive motor	140W domestic brand AC motor
Speed control mode	About 1.2KW

FAQ
Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory! Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year. Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training. Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,. Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider. 2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine. 3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you. Q6: Do you have manual or operation video for us to know more about the machine? A6: Yes, we will send you the manual and operation video after you ask for us. Q7: If there's some spare parts that broke, how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us. Q8: If there's some spare parts that broke, how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side. Q9: Do you have manual or operation video for us to know more about the machine? A9: Yes, we will send you the manual and operation video after you ask for us. Q10: If there's some spare parts that broke, how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us. Q11: If there's some spare parts that broke, how to solve the problem? A11: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
