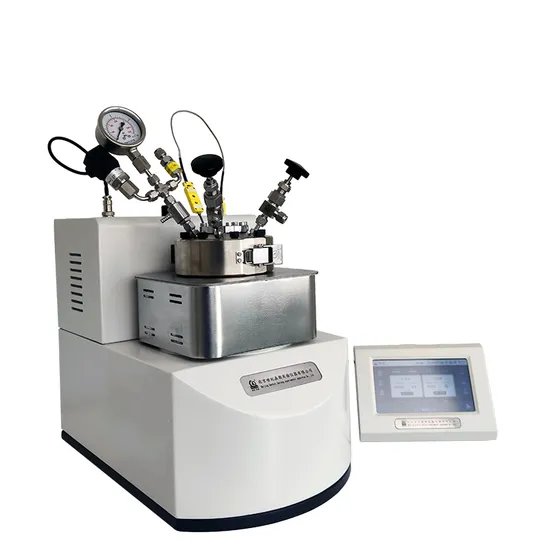

LC-A100ml Chemistry Laboratory High Temperature and High Pressure Stainless Steel Photochemical Reactor

Product Description

Product Parameters

Detailed Photos

Embedded magnet stirring method.
Adopt unique quick-open snap ring seal structure; -Equipped with liquid sampling valve (gas inlet), gas release valve.
Equipped with liquid sampling valve (gas inlet), gas release valve.
Newly upgraded AI artificial intelligence logic PID algorithm, suitable for a variety of chemical tests.
Equipped with identity control system, automatic storage and export of experimental data.
Composite high-temperature sealing gasket, A-type double-line seal;.
Highly sensitive temperature monitor, PID programme temperature controller;
Real-time online curve display of pressure, temperature, speed and torque.
Standard configuration of safety protection and ultra-high temperature sound and light alarm device.
The kettle body can be taken out directly to cool down the temperature, convenient for maintenance.

The high-pressure photochemical reactor adopts the Century Senlong snap ring quick disassembly method, which is safe, convenient, and fast. The sealing method adopts the Century Senlong technology A-type double line sealing structure. Sapphire high-pressure photochemical reactor, window series Sapphire reactor crystal characteristics: Sapphire crystal - a high hardness oxide crystal, is the basic single crystal form of alumina (Al2O3). It has a series of excellent physical and chemical properties, including high strength, high hardness, high temperature resistance, friction resistance, corrosion resistance, good light transmission performance, and excellent electrical insulation performance. Therefore, it can be widely used in various demanding fields such as national defense, scientific research, and civil industry.
1, The main characteristics and applications of Sapphire high-pressure photochemical reactor:
1. It is an ideal material for precision instrument mechanical bearings due to its wear resistance, high hardness, corrosion resistance, and low friction coefficient;
2. Excellent light transmission performance, therefore it is also the material chosen for experimental instruments;
3. High strength, corrosion resistance, high thermal conductivity, high thermal conductivity, high transmittance characteristics, and wide transmittance band (from near ultraviolet to 7um mid infrared), making it an ideal window material and optical component material;
4. Excellent electrical insulation performance, hexagonal symmetric structure, stable chemical properties, making it a semiconductor and superconducting substrate material (with small leakage capacitance and parasitic capacitance);
5. The lattice constant mismatch rate between sapphire C-surface and III-V and II-VI deposited thin films is small (the main epitaxial substrate material for mismatch with GaN).
2, LC-A touch screen top illuminated photochemical reactor 100ml parameter section:
Desktop;
The effective volume is 100ml,;
Design temperature: room temperature~300 ºC,
Design pressure: 0-10MPa;
Heating method: module electric heating;
Mixing method: magnetic stirring;
Mixing speed: 0-1200r/min;
Material of kettle cover, kettle body and internal components: 316L stainless steel, window: Sapphire sapphire crystal; Light window diameter 45mm
The kettle cover is equipped with:
a. 0-16MPa dual range pressure gauge and 12.5MPa safety explosion-proof film;
b. Gas sampling valve (needle valve)
c. The liquid sampling valve (ball valve) is connected to the bottom detection pipe, and should be as close to the bottom of the pot as possible without affecting stirring;
d. Thermowells and thermocouples, used for reaction temperature measurement;
10. MRSC-LC control system
Identity recognition system, graded control
7-inch high brightness TFT LCD touch screen, with rich and comprehensive display content, no blind spots in the field of view, graphic and text display, vivid and simple
Segmented program temperature control, with the ability to set multiple experimental conditions and heating modes. The brand new AI artificial intelligence logic PID algorithm achieves non overshoot and non adjustable control for complex and long lag objects
Real time online curve display of pressure, temperature, speed, and alarm timing
Automatic storage of experimental data, with built-in data recording function, can display real-time data, historical data, and provide report form recording data and alarm recording function.
Equipped with USB export function, it can be further analyzed and processed on the computer, making it easy to save experimental data for long-term use in academic papers and academic research.
Timing function: divided into two modes: constant temperature timing and working timing
A high-temperature and high-pressure photochemical reactor, also known as an external photocatalytic reactor, is a new type of reactor designed for photochemical catalysis, synthesis, degradation, and other reactions. It is suitable for photochemical high-pressure reactions, carbon dioxide (CO2) reduction, carbon dioxide (CO2) reduction to methanol (CH3OH), carbon dioxide (CO2) reduction to methane (CH4), nitrogen oxide (NOx) reduction and degradation, and high-pressure photocatalytic degradation of formaldehyde. Suitable for reactions with small amounts of samples, it is an ideal reaction device for testing counterfeit expensive or low yield raw materials. Company Profile
