Precision CNC Block Parts for 5 Axis Milling Machines

Product Description

High Speed High Precision System 3/4/5axis Advanced Spindle CNC Vertical Milling Turning Drilling Machinery Product Description

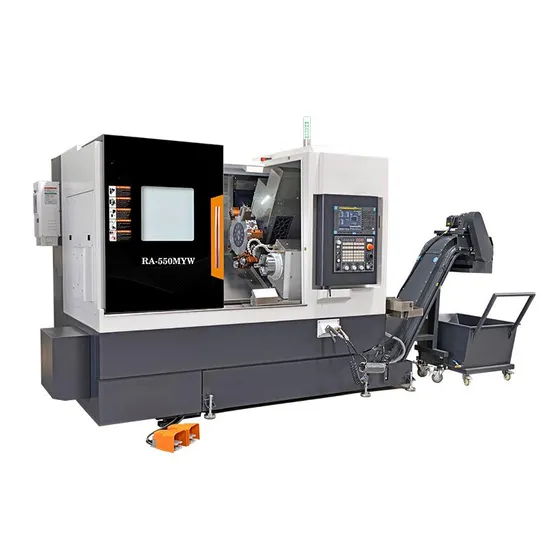

Processing Capability			Unit	RA-550MY
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ420
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	510
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	260
		Z-Axis	mm	600
		Y-Axis	mm	±50
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
		Y-Axis	mm	10
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	460
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

The machine feature and specification .
The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries.

An outstanding example of modern engineering: our CNC turret lathes, a masterpiece of technological advancement, highlight the excellence of modern engineering and set new benchmarks in the manufacturing industry.
A key player in a wide range of manufacturing sectors: this machine occupies an indispensable position in a number of manufacturing sectors and is a key element in many production processes.
Outstanding versatility: the CNC turret lathe stands out in the manufacturing world for its unique versatility, being able to respond flexibly to a wide range of production needs, demonstrating a high degree of adaptability and flexibility.

Precision manufacturing of precision mechanical components: for the production of precision mechanical components, the CNC turret lathe can ensure that every detail meets the design requirements and meets the needs of high-precision manufacturing.
Specialist in the manufacture of complex moulds: the machine also excels in the manufacture of complex moulds, capable of accurately machining moulds of various complex shapes and structures.
Specialist in the production of axle components and wheels: Whether it is axle components or critical components such as wheels, the CNC turret lathe can provide high quality production solutions to ensure stable and reliable product performance.
Diversified metal parts processing: the machine has the ability to process a wide range of metal parts, to meet the diversified needs of different industries for metal parts processing.
Responding to complex production tasks: designed for large-scale, high-precision and complex production tasks involving diverse materials, the CNC turret lathe can easily respond to various production challenges.
Enhance enterprise competitiveness and production efficiency: Its excellent performance greatly promotes the enhancement of enterprise competitiveness and production efficiency, and is an indispensable high-end equipment in modern manufacturing industry.
Hardware Display
Product Parameters
Certifications
FAQ
1. What equipment can you get from our Factory?
* Milling machining center:
Vertical Machining Center
Horizontal Machining Center
Drilling machine
Engraving and milling machine
Gantry type machining center
* Turning center:
Double-spindle turning and milling center
Double-spindle double-lane turning and milling compound center
CNC turning and milling compound center
Turning and milling compound center (true Y-axis power turret)
* Turning center:
CNC turning and milling series
CNC Turret Series
CNC gang knife series
Flat bed CNC lathe
* Five-axis machining center
* CNC machining part
* CNC Tools
2. What are the Payment Terms?A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment. This ensures a secure and seamless transaction process for both parties.
3. When is the delivery time?A: For our standard Vertical CNC Drilling Machine Center, your order can be ready within an efficient time frame of 30 days. Custom or special machines may require additional time, so please place your order according to our provided delivery schedule for precise planning.
4. How are the machines packaged?A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition, safeguarding against any potential shipping damages.5. How can I choose the most suitable machines?A: Simply provide us with your specifications, and we will recommend the most suitable model tailored to your needs. You also have the option to select the exact model yourself. Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you, ensuring an optimal match for your production requirements.
