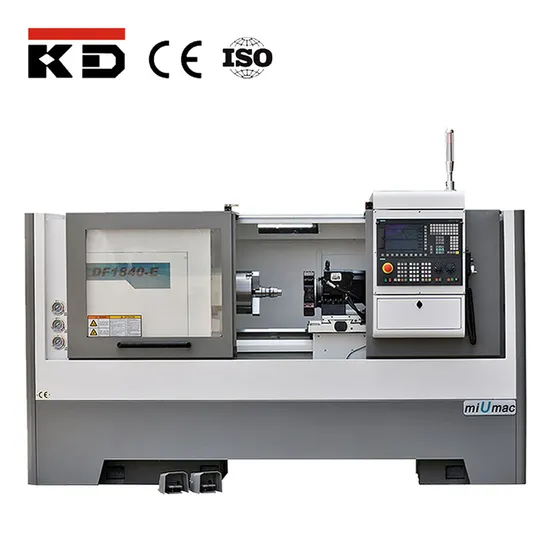

ODM Single-Tool Holder CNC Heavy Duty Machine Lathe Engraving Machines

ODM Single-Tool Holder CNC Heavy Duty Machine Lathe Engraving Machines

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DF1860-F
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing
460mm
Max Swing Over Carriage
240mm
Max Workpiece Length
1500mm
Spindle Bore
80mm
Spindle Nose
D8
Spindle Speed
100-2000rpm
Tool Post
4-Way/6-Way/8-Way Tool Post
Main Motor
5.5kw or 7.5kw
Rapid Feed X/Z Axis
8/10 M/Min
Transport Package
Export Wooden Case
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100

Product Description

ODM Single-tool Holder CNC heavy duty machine lathe engraving machines
Product Description
MODELS CK6140ZX CK6146ZX CK6150ZX
CAPACITY
Max.swing over bed Ф400mm Ф460mm Ф500mm
Max.swing over carriage Ф210mm Ф240mm Ф280mm
Max. length of workpiece 750/1000/1500mm 750/1000/ 1500mm 1000/ 1500mm
Max.turning length 600/850/1350mm 600/850/1350mm 850/1350mm
6-way turret Max.turning length 430mm 430/680/ 1180mm 680/ 1180mm
6-way turret Max.turning diameter 280mm 340mm 340mm
TRAVEL
Max.cross travel(X) 250mm 280mm 280mm
Max.longitudinal travel(Z) 710/960/1460mm 710/ 960/ 1460mm 960/ 1460mm
FEED
Rapid feed for axis X 8m/min 8m/min 8m/min
Rapid feed for axis Z 10m/min 10m/min 10m/min
SPINDLE
Spindle nose D8 D8 D8
Spindle bore Ф80mm Ф80mm Ф80mm
Taper bore of spindle M.T.NO.7 M.T.NO.7 M.T.NO.7
Steps of spindle speed (manual) Variable Variable Variable
Range of spindle speed 100~2000rpm 100~2000rpm 100~2000rpm
TOOL POST
Tool post stations 4-way, 6-way, 8-way
Tool cross section 25×25mm 25×25mm 25×25mm
TAILSTOCK
External diameter of tailstock sleeve Ф75mm Ф75mm Ф75mm
Taper bore of tailstock sleeve M.T.NO.4 M.T.NO.5 M.T.NO.5
Max travel of tailstock sleeve 130mm 130mm 130mm
OTHERS
Min. input 0.001mm 0.001mm 0.001mm
Main motor power 5.5kw (optional 7.5kw) 5.5kw (optional 7.5kw) 5.5kw (optional 7.5kw)
Coolant pump power 75w 75w 75w
Overall dimensions(L×W×H) 2060×1180×1500mm (2060/ 2310/ 2790)×1180×1500mm (2310/ 2790)×1180×1500mm
Net weight 2100kg 2200, 2350, 2900kg 2350, 2900kg
Detailed Photos
