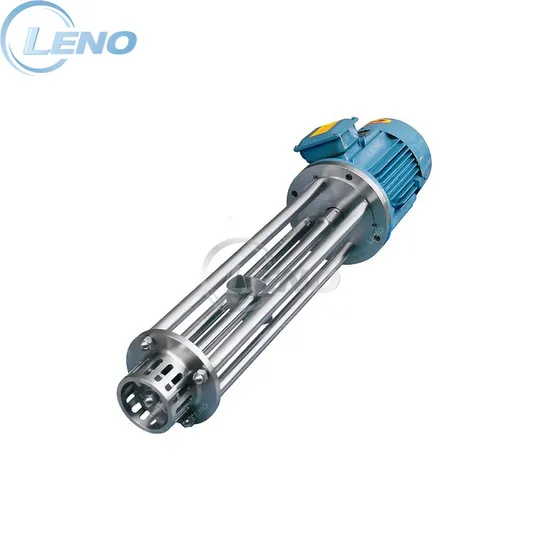

Food Grade Homogenizer High Shear Batch Mixer
| US$500.00-2,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LNX1022
Application Area
Chemical, Food
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Double Cone
Stirring Type
Motor Engine
Working
High Speed Mixer
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
500-20000L/H
Trademark
LENO
Origin
China
Production Capacity
100 Set/Month
Product Description
| Profile type | High Performance Stainless Steel Homogeneous Mixer Homogenizer Shear | ||
| Material | SS304 or SS316L | ||
| Capacity | 0-10T (Customized) | ||
| Tank inside pressure | Normal | ||
| Viscosity | 1-1000000pas | ||
| Rotors teeth | strip type round type etc | ||
| Temperature | 0-100 celsius degree | ||
| Installation | Movebale or Fixed or Lifting | ||
| Connection | Flange at the top of the tank | ||
| Motor type | Normal | Ex-proof | inverter |
| Speed | 0-3400RPM | ||
| RTS Default Specification | LNP-100 SUS304 (If you need other specifications, please contact us first. Thank you.) | ||
| Model | D | D1 | P | L | M |
| LNP-90 | 80 | 140 | 200 | 350 | 165 |
| LNP-100 | 88 | 145 | 200 | 450 | 165 |
| LNP-120 | 120 | 180 | 250 | 750 | 215 |
| LNP-140 | 140 | 210 | 300 | 750 | 265 |
| LNP-160 | 160 | 230 | 350 | 900 | 300 |
| LNP-180 | 180 | 260 | 350 | 900 | 300 |
| LNP-200 | 200 | 270 | 350 | 1250 | 300 |
| LNP-220 | 240 | 320 | 400 | 1400 | 350 |
| LNP-240 | 260 | 340 | 400 | 1600 | 350 |
| Model | Handing capacity (L) | Speed(RPM) | Length (mm) | power(KW) |
| LNP-80 | 10-40 | 2900/3400 | 350 | 1.1 |
| LNP-90 | 10-50 | 2900/3400 | 350 | 1.5 |
| LNP-100 | 50-100 | 2900/3400 | 450 | 2.2 |
| LNP-120 | 100-200 | 2900/3400 | 750 | 3 |
| LNP-120A | 100-300 | 2900/3400 | 750 | 4 |
| LNP-140 | 200-600 | 2900/3400 | 900 | 5.5 |
| LNP-140A | 200-800 | 2900/3400 | 900 | 7.5 |
| LNP-160 | 500-1500 | 2900/3400 | 1250 | 11 |
| LNP-180 | 600-2000 | 2900/3400 | 1400 | 18.5 |
| LNP-200 | 8000-2500 | 1450/1700 | 1600 | 22 |
| LNP-220 | 1000-3500 | 1450/1700 | 1600 | 30 |
| LNP-240 | 1500-5000 | 1450/1700 | 1800 | 45 |
| LNP-270 | 2000-8000 | 1450/1700 | 1800 | 55 |
| LNP-290 | 3000-10000 | 1450/1700 | 2000 | 75 |
| We can customize the equipment according to customer requirements. | ||||
| Q1 | Are you trade or manufacturer? |
| A | We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
| Q3 | What's the difference between Ready-To-Ship and Customized products? |
| A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. |
| Q4 | What is the payment terms? |
| A | We accept ****** Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 | How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
