Economic CNC Gear 4-Axis Hobbing Machine Max Dia 280mm Workpiece, 1-3 Module Range

Product Description

Efficient YK3128 Direct drive high speed CNC gear hobbing machine Max Dia 320mm Max length 210mm workpiece, 2-4 module range

The same quality, lowest price; same price, best quality.

Description			Parameter
Processing Capacity	Control the number of axes Axis			4/5
	Type of machined workpiece Gear Type		Straight teeth, helical teeth, worm gear, splines Etc. Tooth parts
	Machining Accuracy		GB Grade 8 (GB/T10095-2008)
	Workpiece	Max.dia	280mm
		Min.Module	1mm
		max.module	3mm
		Max.length	200mm
	Cutter Tool	Max. Rotating speed	1500 r/min
		Max. Tool Length	80mm
		Max.Hob Dia	120mm
		Dia of changeable center axis which assemble hobbing cutter	From 22, 27
		Tool Position Accuracy	≤5um
		Hob Shifting Travel	100mm
		Hob shifting	Manual/Automatic Manual/Auto
	Spindle Shaft	Hob Head Swing Angle	Plus or minus 45 °
	Turntable	Z-Slide Travel	210mm
		Table diameter Turntable Dia	200mm
		Turntable Max. RPM	200RPM
Power	Main Motor Power Main motor power		17kw
	Total Power of the machine		30kw
Size & Weight	Total Floor Space (L*W*H)		4000 * 2800 * 2900
	Machine Weight Machine weight		5100kg

Processing Object:
spur gear, helical gear , worm gear and spline
Technical description

MLT-YK3128 CNC high speed gear hobbing machine is an excellent domestic vertical gear hobbing machine. Carefully developed by MLT and with fully independent core technology.
Remark: Picture shown as 4 axis machine

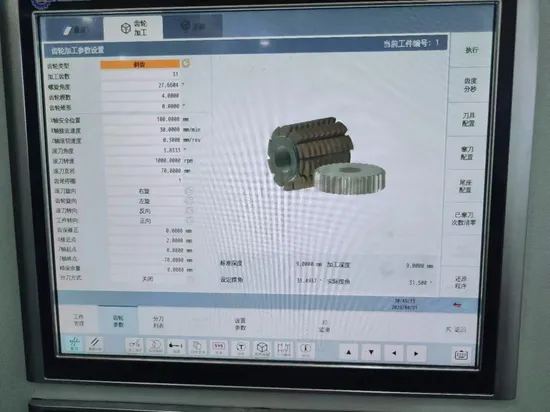

The machine tool is equipped with MLT gear hobbing special control system, the original core gear processing algorithm software (non-secondary development macro program calculation). The technical advantages is multi-axis NC servo drive, which B,C axis adopts high precision and large torque servo direct drive motor (DD servo motor). With high speed, high precision and high torque, MLT-YK3128 has excellent dynamic response performance. Equipped with workpiece hydraulic clamping cylinder, tail seat hydraulic lifting function, compared with other similar equipment, MLT-YK3128 has the characteristics of high machining accuracy, high machining efficiency and good accuracy retention.
This machine tool is a 4-axis / 5-axis CNC high-speed gear hobbing machine working according to the expansion method, with three CNC linear axes: radial feed axis (X-axis); Axial feed axis (Z axis); Tangential movement axis (Y axis, 4 axis /5 axis is available). Two CNC rotation axes; Table rotation shaft (C-axis); Hob spindle rotation shaft (B axis);

Service item:
1. Machine warranty period: 12 months once the customer receives machine, after 12 months, we may answer the customer's question on line or by e-mail within 24 hours
2. Mltor will prepare one more set of quick-wear components with the machine for the customer
3. Mltor will not provide or change any part or component for free if the customer damages them abnormally, customer needs to purchase them separately
4. Mltor will afford the customer's technician local transportation, accommodation and catering cost when the customer's technician comes to Mltor factory to have a train or inspects the machine before the machine delivery and the customer will afford their technician travelling cost
5. In the warranty period, if the customer requests Mltor engineer to support in foreign country, Mltor will supports to check equipment and train the customer technician for free but the customer needs to afford Mltor's engineer travelling expenses, local transportation and accommodation and catering cost
