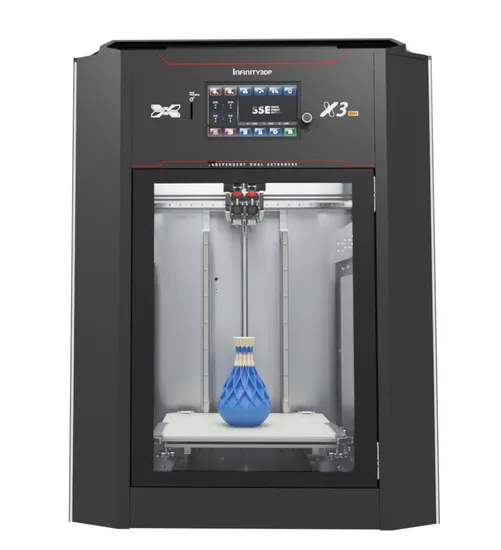

Fused Deposition Modelling PPSU PPS Peek Pekk Peek-CF Peek - GF Industrial-Grade 3D Printers

Product Description

Product Parameters

Basic information
3D printing technology	Fused Deposition Modelling(FDM)
Appearance size	W646*D605*H890 mm
Print volume	300*300*400 mm
Net weight	68kg / 149ibs
Supported languages	Chinese | English | Japanese (shipping depends on country and region)
Body structure	Insulation cabin
Kinematic structure	Core XY
Nozzle
Number of nozzles	2
Nozzle form	Micro precision double-cut lifting mechanism with SE nozzle module
Feeding mode	Proximal
Extrusion gear box
Nozzle diameter	0.5mm (standard) |0.2-0.6mm
Nozzle cleaning mode	Washing tank+scraper
Nozzle temperature
Left nozzle	Standard 400ºC SE base nozzle module
Right nozzle	Standard 400ºC SE base nozzle module (500ºC SE+high flow nozzle module can be purchased as an add-on)
Hot bed / hot cabin
Hot bed	Carbon Fiber printing Base Plate (optional lattice base plate) - High Power Cache platform
Heating bed temperature ( max. )	210ºC
Hot cabin temperature (max.)	150ºC
Software / Warranty Certification
Slicing software	Cura Infinity 3DP Edition
Supported file formats	.3mf / .stl
Printing ability
Printing speed (max./long-term stable printing)	300mm/s
Empty running speed(max.)	500mm/s
Printing layer height (min./Z axis)	0.01mm (10µ)
Support soft materials	Shore A 95-50
Excellent performance	PA-CF, PA -GF, ABS, PETG,, PC, ASA, PEI_9085, PPSU, PPS, PEEK, PEKK, PEEK-CF, PEEK - GF
Wire diameter	1.75mm
Support soft materials	Shore A 95-50
Material box(humidity monitoring)
Electric control / safety
Correction	Factory level and quality calibration
Power consumption	1800W
Application voltage	100-110VAC/18A/1800W or 200-240VAC/9A/1800W
Computing processor	ARM Cortex-M4
File transfer	SD card /USB
Detection mechanism	Material outage detection mechanism
Mechanism
Touch screen	7"/800*480 pixels
XYZ stepper motor	57 frames 0.9ºC
Motor driver chip	32-bit DSP vector control stepper driver module, supports ARC instructions
XY axis transmission components	GT2 belt / japan,THK H-class linear slide
XY axis motion architecture	Core XY
Z-axis transmission components	Japan,THK C3 grade ball screw / THK 4 chain with H grade ball slide rail*2
Z-axis positioning	Mechanical structure light-sensitive positioning probe

Product Description
1.Remove the SE super nozzle module in seconds,One-click disassembly without tools, saving time and effort, highest efficiency.2.Adaptable to any FDM 3D printing machine , a must- have choice for modification.3.Specially treated metal pipes are durable and non-sticky.4.SE+ high floe nozzle can print all materials below 500 degrees, SE Base\SE nozzle it can print on all materials below 400 degrees, and it can be printed without clogging when changing.
5.The total weight ids about 300g. The extruder is independently developed and the discharge is stable and more accurate.
6.Printable on mixed materials including:
Antistatic ESD, Carbon Fiber, Glass Fiber, Foaming, Metal powder Mineral and modified.
Performance Features1.Industrial grade | High rigidity precision Z-axis structure.
2.Aluminum alloy structure, durable and stable, improves printing accuracy.
3.High-speed dual nozzle advanced upgraded version.
Motor-free dual nozzle exchange system | Point-to-point
Mechanical switching.
4.Patented design, printing speed can reach 300mm/s,can print on all materials below 500 degrees, multiple materials can be printed on the flv. Durable and non-sticky.Detailed Photos
