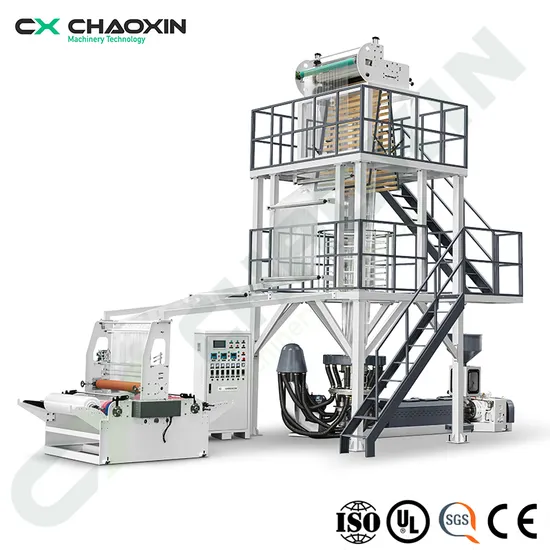

High Speed Rotary Die Head HDPE LDPE PE Plastic Film Blowing Machine Extruder Biodegradable Plastic Blown Film Blowing Extrusion Machinery Price

Product Description

Product Description

Model		CX-50-700	CX-55-900	CX-60-1100	CX-65-1300
Suitable material		HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE
Film width		300-600mm	400-800mm	500-1000mm	600-1200mm
Flim thickness	HD	0.009-0.10mm	0.009-0.15mm	0.009-0.15mm	0.009-0.15mm
	LD	0.02-0.15mm	0.03-0.15mm	0.03-0.15mm	0.03-0.15mm
Output	HD	50kg/h	60kg/h	70kg/h	85kg/h
	LD	60kg/h	70kg/h	85kg/h	100kg/h
Extrusion unit
Screw diameter		Φ50	Φ55	Φ60	Φ65
Screw L/D		30:1 | 32:1 High speed screw	30:1 | 32:1 High speed screw	30:1 | 32:1 High speed screw	30:1 | 32:1 High speed screw
Screw material		Double alloy material	Double alloy material	Double alloy material	Double alloy material
Barrel material		Double alloy material	Double alloy material	Double alloy material	Double alloy material
Barrel cooling fan		370W*2	370W*2	370W*2	370W*2
Main motor		15kw	18.5kw	22kw	30kw
Barrel temperature control		3 zones	3 zones	4 zones	4 zones
Average power consume		18kw	22kw	25kw	35kw
Die unit		Die part	Die part	Die part	Die part
Die head	HD	Φ60mm	Φ80mm	Φ100mm	Φ120mm
	LD	Φ120mm	Φ150mm	Φ220mm	Φ250mm
Temperature control		ZONE 5	ZONE 5	ZONE 6	ZONE 7
Ari ring		Double vent air ring	Double vent air ring	Double vent air ring	Double vent air ring
Air blower		2.2-4kw	4-5.5kw	5.5-7.5kw	5.5-7.5kw
Center steady stick		1	1	1	1
Take-up unit		Extraction device	Extraction device	Extraction device	Extraction device
Roller width		700mm	900mm	1100mm	1300mm
Effective width		600mm	800mm	1000mm	1200mm
Height adjustable		800mm	800mm	800mm	800mm
Take-up speed		10-110/min	10-110/min	10-110/min	10-110/min
Take-up motor		1.1 kw	1.5kw	1.5kw	1.5kw
Winding unit		Coiler
Winding type		Surface friction winding	Surface friction winding	Surface friction winding	Surface friction winding
Winding motor		10N.m	10N.m	16N.m	16N.m
Winding speed		10-120m/min	10-120m/min	10-120m/min	10-120m/min
Voltage		380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE
Machine size (L*W*H)		5.5*3.5*5.2m	5.5*3.8*5.2m	5.5*4*6.2m	5.5*4*6.5m

Company Profile

Exhibition

Customer Reviews

Certifications

Cooperative partner

Packaging & Shipping

FAQ

Q: What are the core advantages of your blown film machines?
A: Our blown film machines feature a choice of original German Siemens, General Electric, or Brooke motors. They achieve energy savings of up to 30% compared to competitors, with a production output surpassing the industry average by 20-30%. Our machines offer exceptional stability, compatibility of components, and a three-year warranty on core parts, as opposed to the standard one-year warranty in the industry.
Q: How do your blown film machines ensure energy efficiency and high output?
A: Our machines utilize advanced energy-saving technology and efficient motors, resulting in an energy savings rate exceeding 30%. Additionally, our optimized design ensures production output surpasses industry norms by 20-30%.
Q: What quality assurance do you offer for your blown film machines?
A: We provide a three-year warranty on the quality of core components, which exceeds the standard one-year warranty in the industry. Each machine undergoes rigorous quality checks and testing to ensure consistent performance and reliability.
Q: Can your blown film machines produce high-precision films?
A: Yes, the films produced by our machines exhibit high precision. We can also provide excellent raw material formulation data to guarantee product quality.
Q: Do you provide formulation data for raw materials?
A: Absolutely, we offer detailed raw material formulation data to assist you in achieving superior production results.
Q: What stability features does your blown film machine offer?
A: Our machines are meticulously designed for exceptional stability. High-quality core components and stringent quality inspection procedures ensure reliable long-term operation.
Q: Could you provide more details about the warranty period?
A: The warranty period for our core components is three years, covering motors and other vital components. This extended warranty provides greater reassurance for your investment.
Q: How efficient is the production output of your blown film machines, and is the operation user-friendly?
A: Our machines boast an output exceeding industry standards and are user-friendly in operation. We also offer training and technical support to ensure you can maximize the potential of the machine.
Q: Do you have success stories or client testimonials?
A: Certainly, we have numerous satisfied client testimonials and success stories that we can provide for your reference.
Q: How can I get in touch for more information?
A: Feel free to contact us through the Made-in-china platform's online messaging feature. You can also find our contact details on our official webpage. We are ready to provide detailed information and answer any queries you may have.
