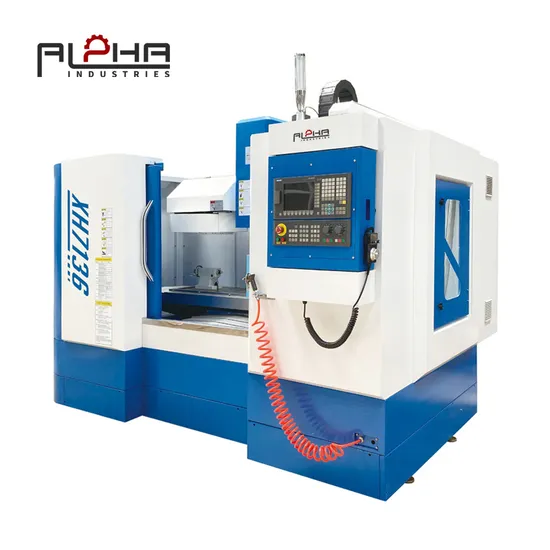

CNC Milling Body Boasts Strong Carrying Capacity Xh7136 Vertical Machining Center

Product Description

Product Description
With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components' machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.
*Base, column, worktable, middle slide, lifting slide and etc. all major components are casted and formed by high-strength materials and disposed by artificial seasoning treatment to ensure long-term stability of machine tool and provide guarantee for machine tool stable performance.
*This machine adopts hi-speed, hi-precision and hi-rigidity spindle units, suggesting strong carriage capacity with Max. rotating speed up to 6000rpm;
*X travel of worktable reaches 950mm, Y & Z guideways all adopts 950 mm,both Y & Z guideways are rectangular rails with supersonic frequency induction hardening & precision grinding. slide guideway has experience precision scraping and pasted compound PTFE materials; equipped with automatic obliged lubrication, frictional resistance of feeding motion declines and reduces low-speed creeping, which improves accuracy life of machine tools.
*X, Y and Z three axis adopts high-precision & high-strength ball screw and servo motor to ensure positioning accuracy of machine tools.
*Guideway and ball screw adopts protection devices to ensure cleaning of ball screw and rails as well as machine transmission & operation accuracy.
*Z axis adds clump weight balancing devices to ensure spindle motion stable and smooth.
*Power-driven lubrication devices could have forced-feed lubrication upon longitudinal, horizontal, vertical lead screws and guideways to diminish abrasion and ensure machine high-efficiency operation; meanwhile, cooling system could change amount of flow by adjusting spray nozzle to satisfy different processing demands.
*Machine operation system could suspend on the top right of machine through suspension arm; this machine conforms to human engineering principle; the spindle box could rotate certain angel, much more convenient & reliable.
Product Parameters

Model			XH7136
1	Main motor		5.5KW (Standard Accessories:Frequency Conversion Motor)
2	Spindle taper		BT40
3	Spindle speed		200-8000rpm
4	Distance of spindle end to		100~600 mm
	worktable plane
5	Distance of spindle hole center to column plane		460 mm
6	Worktable size		1250×360 mm
7	Worktable travel (L/H)		900/350 mm
8	Max. load of worktable		400kg
9	Worktable T Slot: No./Width/Interval		3/18/80
10	Max. Movement	X Axis	10 m/min
		Y Axis	10m/min
		Z Axis	8 m/min
11	Positioning Accuracy		0.02mm
12	Repeatable Positioning Accuracy		0.01mm
13	Machine Dimension (L*W*H)		3300×2280×2550mm
14	Machine Weight		3800 kg

Packing List

No.	Name	Specification	Qty.
1	Spring Clamp Handle	BT40-ER32-100	1
		(3-4, 5-6, 7-8, 9-10, 11-12, 13-14, 15-16)
2	Foundation Bolt	M16x450	6
3	Screw Nut		6
4	Washer		6
5	Operation Manual		1
6	Qualified Certificate		1
7	Packing List		1
8	KND1000MI USER Manual		1
9	Communication Software(Soft Disk)		1
10	Communication Cable		1

Sourcing List of Major Parts

No.	Name	Origin	Qty.
1	Spindle	Taiwan	1 Set
2	Pressure Boost Cylinder	Taiwan	1 Set
3	X Ball Screw Pair	Jiansuqijian	1 Pair
4	Y Ball Screw Pair	Jiansuqijian	1 Pair
5	Z Ball Screw Pair	Jiansuqijian	1 Pair

Standard Accessories

1	GSK 980MDi System
2	Taiwan BT40 Spindle Unit
3	16 funnel type tools

Optional Accessories

1	Spindle oil cooler
2	Arm type tools
3	10000rpm spindle
4	Spiral chip extractor
5	Heat exchanger
