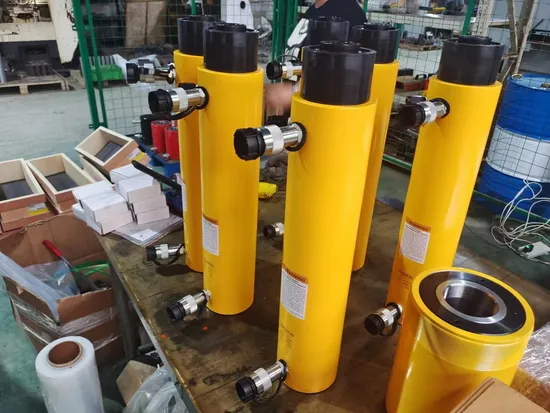

Rr-756 Enerpac Equivalent 75 Ton 6" Stroke Double Acting Hydraulic RAM Cylinder with Outside Thread

Product Description

Enerpac Equivalent 75 ton 6" stroke double acting hydraulic ram cylinder with outside thread
Product Description
Features:
Max Working Pressure: 700 Bar;
These double acting cylinders enable quick retraction and are designed to be used in all orientations;
Base mounting holes along with ram and collar threads enable various installation options;
Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
Cylinder piston rod wiper reduces contamination, extending cylinder life;
Over-pressurisation is prevented due to built in safety valves; Coated with corrosive resistant baked enamel.
Product Show

Product Parameters

	Capacity	Stroke	Max .Cylinder		Oil Capacity		Bolt	Collaps.	Weight
Model	(ton)	B	Capacity(Kn)		(cm³)		Circle	Height	(kg)
		(mm)	Push	Pull	Push	Pull	Z(mm)	A (mm)
KSRR-1010	10	254	101	33	368	122	-	409	12
KSRR-1012		305	101	33	442	147	-	457	14
KSRR-308	30	209	295	53	879	400	-	395	18
KSRR-3014		368	295	53	1549	703	-	549	29
KSRR-506	50	156	498	103	1111	335	-	331	30
KSRR-5013		334	498	103	2378	718	-	509	52
KSRR-5020		511	498	103	3638	1099	76	733	68
KSRR-756	75	156	718	156	1601	490	-	347	41
KSRR-7513		333	718	156	3417	1046	-	525	68
KSRR-1006	95	168	933	435	2238	1045	139	357	61
KSRR-10013		333	933	435	4439	2071	139	524	93
KSRR-10018		460	933	435	6132	2861	139	687	117
KSRR-1502		57	1386	668	1129	544	-	196	49
KSRR-1506	150	156	1386	668	3090	1488	158	385	93
KSRR-15013		333	1386	668	6597	3711	158	582	124
KSRR-15032		815	1386	668	16145	7775	-	1116	238
KSRR-2006		152	1995	1017	4332	2209	127	430	147
KSRR-20013		330	1995	1017	9405	4795	127	608	199
KSRR-20018	200	457	1995	1017	13025	6640	127	165	204
KSRR-20024		610	1995	1017	17385	8863	127	917	279
KSRR-20036		914	1995	1017	26049	13280	127	1222	383
KSRR-20048		1219	1995	1017	34741	17712	127	1527	483
KSRR-3006		153	3201	1703	6997	3721	158	485	200
KSRR-30012		305	3201	1703	13947	7418	158	638	312
KSRR-30018	300	457	3201	1703	20889	11114	158	790	385
KSRR-30024		609	3201	1703	27850	14811	158	943	469
KSRR-30036		915	3201	1703	41843	22253	158	1247	628
KSRR-30048		1219	3201	1703	55745	29646	158	1552	780
KSRR-4006		152	4292	2297	9319	4987	203	538	303
KSRR-40012		305	4292	2297	18700	10007	203	690	399
KSRR-40018	400	457	4292	2297	28018	14995	203	843	453
KSRR-40024		610	4292	2297	37400	20014	203	995	597
KSRR-40036		914	4292	2297	56037	29988	203	1300	792
KSRR-40048		1219	4292	2297	74737	39996	203	1605	980
KSRR-5006		153	5108	2838	11164	6203	203	577	432
KSRR-50012		305	5108	2838	22256	12365	203	730	589
KSRR-50018	500	457	5108	2838	33347	18526	203	882	680
KSRR-50024		609	5108	2838	44440	24689	203	1035	816
KSRR-50036		915	5108	2838	66768	36973	203	1339	1002
KSRR-50048		1219	5108	2838	88951	49418	203	1644	1224

Cases Show
Related Products

HYDRAULIC HAND PUMP
Model	KSP-142 to KSP-80
Pump Type	Single acting and two speed
Oil Capacity	350 to 2200ml
Max. Working Pressure	700bar
Weight	2.2 to 10.9KGS

Electric Hydraulic Pump
Model	KHE-4DM or larger
Power Supply	220V, 50/60Hz, 1PH (can be customized)
Motor Power	1.1kw or larger
Oil Capacity	10L or larger
Flow	7L/min(1st stage), 0.8L/min(2nd stage) or larger
