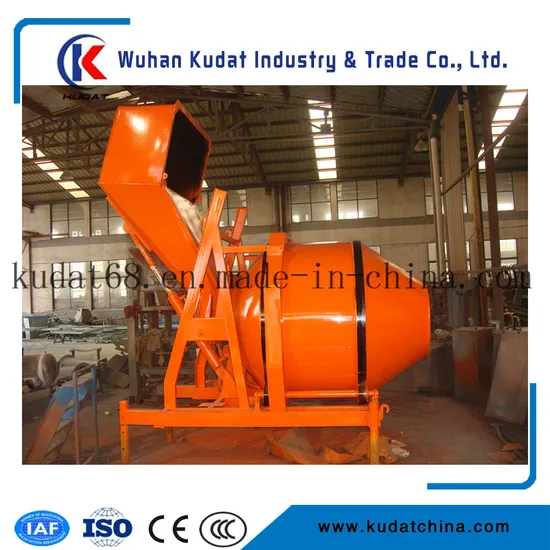

350L Mobile Electric Cement Mixer Rdcm350

Product Description

Electric 350L Concrete Mixer (hydraulic tipping hopper) RDCM350-8EH
Main specification:

Model	RDCM350-8EH (JZC350Y)
Capacity of discharge	350L
Capacity of loading	560L
Drum rotating speed	13r.p.m
Capacity per hour	10-14m3/h
Power of motor	7.5KW
Power source	Electric motor
Max. towing speed	20Km/h
Overall size	3100*2140*3070mm
Weight	1700kg
Electric and Hydraulic tipping hopper

Introduction:
1 . Monitoring system of mixer can work condition of monitor reduction box, discharge pump and lubricating pump;
2 . Equipped with special- purpose motor lubricate oil pump, and four separate pump core
respectively feeds oil to four axial heads directly, without using by-pass valve;
3 . Multi pipes & way water injecting system can make sure that water can injected uniformly;
4 . Heavy design and stable running.
Features of concrete mixer machine
1 . RDCM series Concrete Mixer is portable and movable which can mix plasticity and damp half-dry concrete.
2 . It can be used for mixing plastic and half-dry hard concrete.
3 . It is reliable, easy to be operated and moved.
4 . It can be consisted of medium-sized mixing plant.
5 . Shaft sealing has long life because they are sealed by two reliable face seals and the others unique seal which combinate high pressure grease.
6 . Besides JZC seies Concrete Mixer, we also sell Twin Shaft Concrete Mixer and Planetary Concrete Mixer.
Descriptions of RDCM350-8EH Electric Concrete Mixer :
RDCM series mixer is a gravity type of double-conic reversing drum concrete mixer,the drum
transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise
during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and
precast plant.
