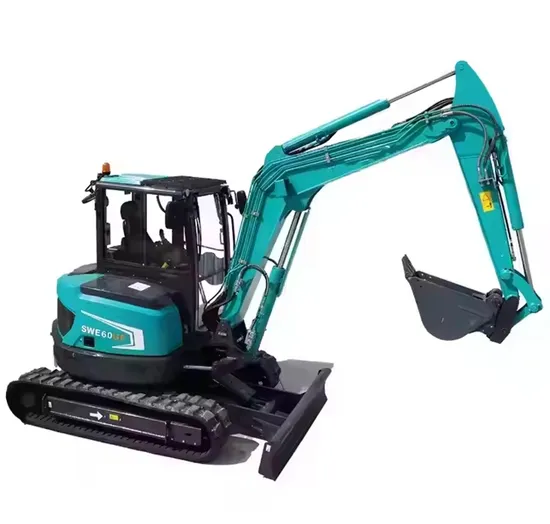

Sunward 6 Ton Crawler Excavator Swe60UF Small Hydraulic Digger with EPA CE
Basic Info.
Model NO.
SWE60UF
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Max.Digging Height
5615mm
Max. Unloading Height
3950mm
Max. Digging Depth
3710mm
Max. Vertical Digging Depth
3050mm
Max. Digging Reach
6230mm
Bucket Digging Force
46.8kN
Arm Digging Force
31.1kN
Max. Traction
48.9kN
Traveling Speed
4.07/2.43 Km/H
Ground Specific Pressure
31.5kpa
Swing Speed
9.4rpm
Engine Model
V2607-Di-Te3b
Power/Speed
36.5kw/2000rpm (Gross);35kw/2000rpm (Net)
Transport Package
Comply with Export Packaging Requirements
Specification
5500*1980*2550 mm
Trademark
SUNWARD
Origin
China
Production Capacity
300-500units/Month
Packaging & Delivery
Package Size
560.00cm * 200.00cm * 260.00cm
Package Gross Weight
6000.000kg
Product Description
Product DescriptionThe SWE60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. It combines the power of the engine, delivering 36.5 kW, with incredible precision thanks to the dual proportional joysticks and the perfectly fitted hydraulic flow. Its exceptional digging reach performance means no worksite is off-limits.
Excavators feature attractive appearance, excellent performance, user-friendly operation, easy maintenance and internationally advanced performance indicators, and are exported to more than 60 countries and regions, including Europe and USA.*Compact and FlexibleThe zero-tail swing frame is easy and comfortable in the wall-side construction and perfectly performs corner construction with the deflection of the working device.*Well-equipped auxiliary pipelineThe standard auxiliary pipeline and hydraulic quick hitch pipeline can meet the needs of various attachments.*Powerful EngineThe use of large-displacement turbocharged engines meeting Euro III and Euro V emission standards has the advantages of unilateral maintenance, strong power, being economic and green. The optimized low speed gears matching results in higher efficiency and lower fuel consumption when the engine is operating at low speed. Product Parameters
| Outline dimension (L×W×H) | 5500×1980×2550 mm | ||
| Dimension parameter | A)Wheel tread | 1965mm | |
| B)Total length of track | 2495mm | ||
| C)Ground clearance of platform | 630mm | ||
| D)Tail swing radius | 1050mm | ||
| E)Chassis width | 1960mm | ||
| F)Track width | 400mm | ||
| G)Ground clearance of chassis | 318mm | ||
| H)Track height | 594mm | ||
| I)Total length | 5498mm | ||
| J)Cab roof height | 2550mm | ||
| K)Width of cab | 1830mm | ||
| Working range | a)Max.digging height | 5615mm | |
| b)Max. unloading height | 3950mm | ||
| c)Max. digging depth | 3710mm | ||
| d)Max. vertical digging depth | 3050mm | ||
| e)Max. digging reach | 6230mm | ||
| f)Max. digging reach on theshutdown plane | 6105mm | ||
| g)Max. blade lifting height | 455mm | ||
| h)Max. blade digging depth | 415mm | ||
| r)Min. slewing radius | 2640mm | ||
| Dozer blade (L×W) | 1960×340 mm | ||
| Machine weight | Rubber track | 5.63t | |
| Steel track | 5.7t | ||
| Bucket capacity | 0.18m³ | ||
| Bucket digging force | 46.8kN | ||
| Arm digging force | 31.1kN | ||
| Max. traction | 48.9kN | ||
| Boom swing angle (Left / Right) | 70°/50° | ||
| Traveling speed | 4.07/2.43 km/h | ||
| Gradeability | 35° | ||
| Ground specific pressure | 31.5kPa | ||
| Swing speed | 9.4rpm | ||
| Engine | Brand | KUBOT A | |
| Model | V2607-DI-TE3B | ||
| Type | 4-cylinder, 4-stroke, water cooling | ||
| Displacement | 2.615L | ||
| Power/Speed | 36.5kW/2000rpm (gross) | ||
| 35kW/2000rpm (net) | |||
| Main pump | Type | 2 variable plunger pumps | |
| 1 gear pump | |||
| Displacement | 2×59+42 L/min | ||
| Pressure of main overflow valve | 2×24.5+21 MPa | ||
| Capacity of fuel tank | 70L | ||
| Capacity of hydraulic oil tank | 70L | ||
