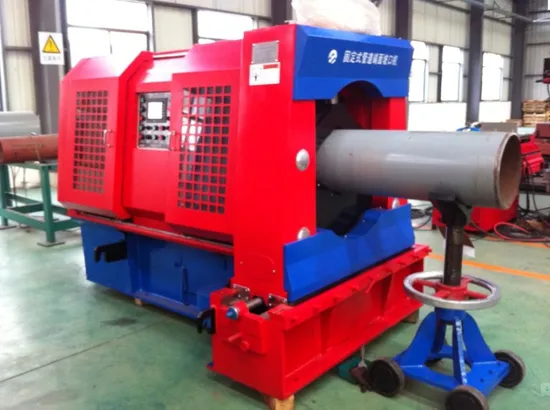

Pipe Beveling Machine, CNC Pipe/End Groove/Chamfering Machine

Product Description

New Fast Pipe Beveling Machine, CNC Pipe End Beveling Machine
Performance features
On-line performance: Good(designed as per the on-line equipment of the production line)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Bevel cutting: Cutting a pipe with other equipment such as band saw and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of pipes with heavy wall thickness
Technical parameters
Pipe diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/ dn200-800(Φ 219-813);
Pipe wall thickness applicable: 4-90mm; 6-180mm
Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
Bevel shape: U, x, v and double v
Driven by: Motor
Clamping system: Work piece is clamped by hydraulic cylinder & centering automatically
Bracket system: Screw lifting adjustable
Rev of the principal axis: Stepless speed control & variable frequency
Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0° ~45°
Widthwise displacement: ± 50mm; ± 100mm
Control system: PLC controlling; CNC controlling

1	Pipe Diameter Applicable	DN50-400/DN100-400/DN200-800/DN200-600
2	Wall Thickness	4-90mm;6-180mm
3	Material Applicable	C.S,S.S, Alloy Steel, Cryogenic steel, etc.
4	Bevel Shape	U,X,V,and Double V
5	Control System	PLC, CNC

Company Profile
QSPT is professional manufacture company of pipe fabrication machines.. we provide you with pipe beveling/chamfering machine,pipe welding machine, pipe/elbow/flange fitting-up equipment, intelligent pipe warehouse and pipe fabrication line.
Qianshan has partnership with many companies, such as China Oil & Gas, China Petroleum (CNPC/PTR), China Petrochemical (SINOPEC/KSS), China Ocean/Marine/Onshore & Offshore Engineering(CNOOC/CNOEC), China Chemical Engineering (CNCEC), China Nuclear Energy (CNECC), China Thermal Power, China Hydroelectric, China Wind Power, Metallurgy(MCC), China Shipbuilding Industry Corp(CSIC/CSSC), China Aerospace(CASC/CASIC), etc. Its products have been exported in large scale to Southeast Asia, Africa, Europe, America etc.

After Sales Service
Aim of after-sales service: standing in the customers' shoes
Team of after-sales service: Client satisfaction is lowest standard
Site of after-sales service: professional, comprehensive,detailed
promise of after-sales service: to quickly and efficiently resolve all after-sales issues raised by clients without being limited by conditions of costs.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory based trading company
Q: How long is your delivery time?
A: Generally it is 30-40 days if the goods are in stock. or it is 60-80 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us.
