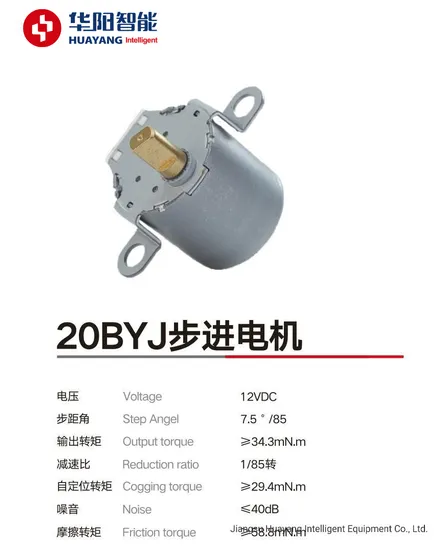

20byj Swing Motor Electric Micro DC Stepper Motor
| US$0.80 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
20BYJ
Number of Stator
Four-Phase
Excitation Mode
PM-Permanent Magnet
Function
Control, Driving
Number of Poles
12
Operate Mode
Three Phase Double Beat
Type
Electromechanical
Certification
ISO9001, CCC, VDE
Brand
Huayang
Transport Package
Carton Box
Specification
200 pcs
Trademark
Huayang
Origin
China
HS Code
8501109990
Production Capacity
150000000
Product Description
Product Description Place of Origin: Jiangsu, China (Mainland) Brand Name: Huayang Model Number: 20BYJ46 Phase: 4 Certification: CCC, CE, ISO, ROHS, UL Step Angle(degrees): 5.625°/64 Rated voltage: 5v 12v 24v DC Slow dow rate: 1/64 Detent Torque: >34.3mN.m noise: <40dB Useage: Home ApplianceHuayang stepper motor products are widely used in the fields of household appliances,cleaning equipment,pump products and industrial automation,such as air condioner,washing machines,dishwashers ,vacuum cleaners,etc.With the improvement of living standards, more and more families get surveillance camera. The corresponding surveillance camera motor market is developing rapidly.
Performance Parameters
| Model | Voltage V | Resistance (Q)/Phase (at 25ºC) (Ω) | Operating Frequenc (PPS) | Pull-in Torque (mN.m) 100PPS | Detent Torque (mN.m) | Max. Freeload Pull-in (PPS) | Max. Freeload Pull-out Frequency (PPS) | Temperature Rise K | Noise dB (A) | Step Angle (1-2Phase) | nsulation Class |
| 20BYJ46 | 5 | 60 | 100 | ≥29.4 | ≥29.4 | ≥500 | ≥900 | ≤60 | ≤40 | 7.5°/85 | E |
| 12 | 250 | 100 | ≥29.4 | ≥29.4 | ≥550 | ≥900 | ≤60 | ≤40 |
Mechanical Dimensions:mm
