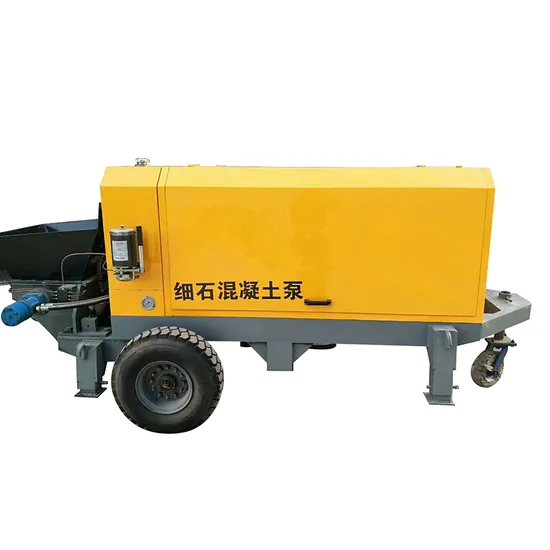

Concrete Pump Made in China Forceful Diesel Engine
Basic Info.
Model NO.
HW15-15
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Construction
Structure
Cylinder Type
Productivity
6m3/H
Feeding Height
1000mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Max.Aggregate Size
15mm
Max Vertical Delivery Distance
20-30m
Max Horizontal Delivery Distance
40-50m
Transport Package
Wooden Case
Specification
1750*700*1200mm
Trademark
HW
Origin
China
HS Code
8413400000
Production Capacity
1000sets/Month
Product Description
To customers:1. We are a factory focus in Construction Machines for more than 10 years with CE, ISO, BV, TUV. 2. All of our Concrete Pump has both electric and diesel power for your choice;
3. Specialized After-Sales Service Team for 24h aboard site serving;
4. Overseas Spare Parts, guarantee the sufficient spare parts locally.
Products Description:
Hengwang HW15-15 Concrete Pump
Max Vertical Delivery Distance : 30m
Max Horizontal Delivery Distance : 50mmDelivery Capacity: 6m3/h
Hengwang Concrete Pump: High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.
Product Paramenters:
| Concrete Pump (Model: HW15-15) | |
| Power | 15kw |
| Voltage | 220V/380V, (We also have Diesel type) |
| Max.Aggregate Size | 15mm |
| Max Vertical Delivery Distance | 20-30m |
| Max Horizontal Delivery Distance | 40-50m |
| Delivery Capacity | 5-6m3/h |
| Cylinder Stroke | 350mm |
| Diameter of Delivery Pipe | 80-100mm |
| Total Weight | 600kg |
| Steel pipes | 10m |
| Hoses | 10m |
| Overall Dimension (L*W*H) | 1750*700*1200mm |
Packing details: Wooden case
